Alcohol Distillation: Process and Equipment

The distillation of alcohol separates ethanol from water by boiling the mixture and condensing the vapor. Ethanol is the more volatile component, so the condensate comes off stronger than the liquid you started with. Repeat that step, or stack it inside a column, and the strength climbs until physics stops it at 95.6%.

What actually happens during the distillation of alcohol?

Two liquids, one boiler. Heat an ethanol-water mixture and both components send molecules into the vapor space, but ethanol is more volatile than water, so it goes up in a higher proportion than it sits in the pot. Condense that vapor and you have a liquid richer in ethanol than the charge. That single boil-and-condense cycle is the entire mechanism. Everything else in a still exists to repeat it.

The word to hold onto is enrichment, not separation. Distillation of alcohol does not split ethanol away from water in one clean move the way a filter splits solid from liquid. Each cycle shifts the ratio a little further. How far it shifts depends on how different the two components’ volatilities are at that composition, and that difference shrinks as the mixture gets stronger. The first pass off a low-strength wash gives a big jump. The tenth pass on an already-strong mixture barely moves the needle.

This is why “how many times do I distill it” is the wrong question and “how many stages does my equipment give me” is the right one. A theoretical stage is one full vapor-liquid equilibrium event. A simple pot boil gives roughly one. A packed or plated column gives many, stacked vertically, in a single pass. Same physics, different hardware count.

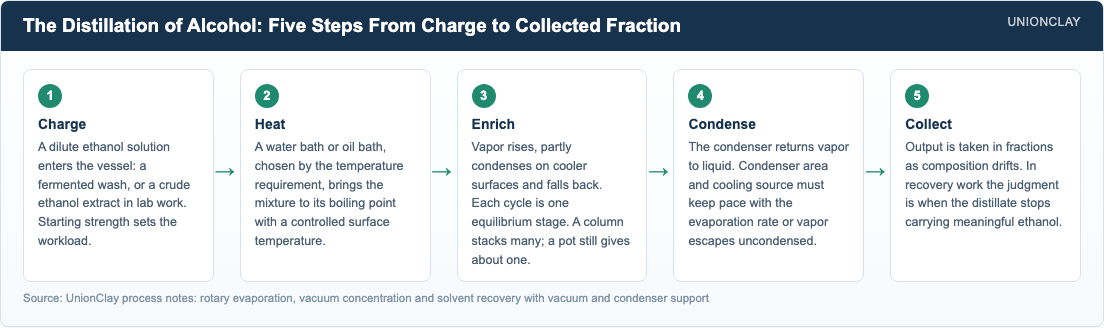

What are the steps in the process?

Whether the vessel is a copper pot or a jacketed stainless evaporator, the sequence does not change. Heat in, vapor up, enrichment in the middle, condensation at the top, collection at the end.

Charge. The feed is a dilute ethanol solution: a fermented wash in a beverage or fuel context, or a crude ethanol extract in a lab context. Its starting strength sets how much work the rest of the process has to do.

Heat. The heat source raises the mixture to its boiling point. In our equipment that is a water bath or an oil bath chosen by the temperature requirement, not an open flame, because bath heating gives you a controlled surface temperature instead of a hot spot.

Enrich. Vapor rises and some of it condenses on cooler surfaces above the liquid, then falls back. Every one of those small condense-and-fall events is another equilibrium stage. A pot still gives you almost none of this. A reflux column is built entirely around forcing it to happen many times over.

Condense. The condenser turns vapor back into liquid, and the cooling source behind it decides whether that actually happens at your throughput. An undersized condenser does not lower your yield politely; it lets vapor escape uncondensed.

Collect. Output is taken in fractions across the run, because composition drifts as the pot depletes. In spirits work these are called heads, hearts and tails. In solvent recovery the equivalent judgment is when to stop, once the distillate has stopped carrying meaningful ethanol.

Why does alcohol distillation stop at 95.6%?

Here is the answer the top search results avoid. Ethanol and water form an azeotrope: at atmospheric pressure, a mixture of roughly 95.6% ethanol by mass boils as a constant-boiling mixture, meaning the vapor coming off has the same composition as the liquid it left. When vapor and liquid are identical, there is nothing left to enrich. The mechanism from the first section simply switches off.

Read that again in purchasing terms: past that point, more stages do nothing. Not a taller column, not a better packing, not another pass, not a bigger boiler. If someone quotes you a still and promises anhydrous ethanol out of a straight atmospheric distillation, the promise is against physics, not against the budget. We would rather lose that order than take it.

Getting past the azeotrope means changing the system rather than buying more column. The routes are established chemical engineering, not tricks: molecular sieve dehydration, azeotropic or extractive distillation with a third component that breaks the equilibrium, pressure-swing operation that moves the azeotropic composition, or membrane pervaporation. Every one of those is a separate unit operation with its own capital and its own operating cost. That is the honest cost of the last few percent, and it is why 95.6% is a commercial dividing line and not just a chemistry-class factoid.

The practical takeaway for most readers is gentler than it sounds. If your process needs concentrated ethanol as a solvent, as an extraction carrier, or as a recovered stream to reuse, the azeotrope is not a problem at all. It is a ceiling you were never going to touch anyway.

Pot still, column, or rotary evaporator?

These three get lumped together in search results as if they were competing products. They are not. They answer different questions.

A pot still is a single-stage batch boiler. Low stage count is the whole point in beverage work, because the compounds that ride along with the ethanol are the flavor. Efficiency is not the goal.

A rectifying column stacks stages to drive strength toward the azeotrope. Choose it when you want ethanol and nothing else, and when you are willing to pay for height, reflux control and the energy that reflux costs.

A rotary evaporator is not a still and does not compete with either. Its job is the reverse framing: you do not want the ethanol as a product, you want it gone, and you want whatever it was dissolving to survive the removal. The flask spins to spread a thin film, vacuum drops the boiling point, and the condenser recovers the solvent for reuse. That framing covers most of the ethanol-related equipment questions we actually get asked, and it is why our rotary evaporator systems are specified as a matched evaporation line rather than as a single machine, with bath temperature, flask size, condenser capacity, vacuum level and chiller support all evaluated together.

There is a fourth case. When the material left behind after the ethanol is gone is heat-sensitive or high-boiling, and you still need to separate or purify it, atmospheric distillation is the wrong tool entirely. That is where short-path molecular distillation under high vacuum takes over, and our molecular distillation selection guide walks through the feed material, vacuum stability and feed rate questions that decide it.

What does industrial ethanol recovery hardware look like?

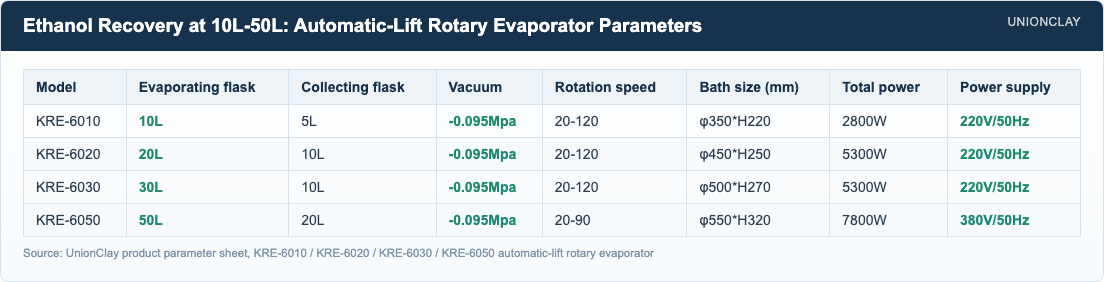

Hobby-still articles show copper. Legal-warning articles show nothing. Here is the actual parameter sheet for our automatic-lift range, the equipment that does ethanol recovery at 10 to 50 litre scale.

Four things in that table decide more purchases than the flask number does.

The collecting flask is half the evaporating flask. A 10L evaporating flask pairs with a 5L collector; a 50L flask pairs with 20L. The receiver is sized for the solvent fraction you expect to pull off, not for the whole charge. If you plan to recover more ethanol than that in one uninterrupted run, you are not buying a bigger evaporator, you are planning a drain cycle.

Vacuum is flat at -0.095MPa across all four models. Scaling up does not buy you a deeper vacuum here. Your boiling point at 50L is the boiling point you had at 10L, which is exactly what you want when you are protecting the same material.

Power is not linear. 2800W at 10L, 5300W at both 20L and 30L, 7800W at 50L. The jump lives in the bath, and the bath diameter tells you why, growing from φ350 to φ550 as the flask grows. Confirm your circuit before the flask size, not after.

The KRE-6050 is 380V. The three smaller models run on 220V/50Hz; the 50L model needs 380V/50Hz. If your site only has single-phase supply, the KRE-6050 is off your list before any other conversation starts. Its rotation also tops out at 20-90 rpm against 20-120 on the smaller three, because a 50L flask of liquid is a different mechanical problem. All four use electric bath lift, so raising and lowering the bath is a panel action at any size in the range. The full parameter set sits on the 10L-50L automatic-lift rotary evaporator page, and the rotary evaporator category lists the other configurations we build around the same physics.

Do you need vacuum to distill alcohol?

To make ethanol, no. Atmospheric stills have worked for centuries. To recover ethanol from something you care about, yes, and the reason is temperature rather than pressure.

Reduced pressure lowers the boiling point of the solvent. At -0.095MPa the ethanol leaves at a bath temperature gentle enough that a heat-sensitive extract, a reaction product or a botanical concentrate is not cooked while the solvent is being pulled off. The vacuum is not there to speed things up. It is there to let you use a cooler bath, which is why water bath and oil bath are both offered and chosen by the temperature requirement rather than by preference.

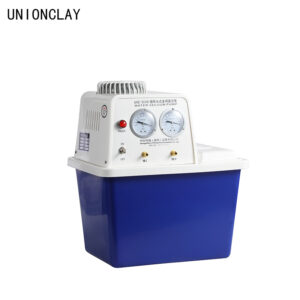

Vacuum also drags three other components into your decision. The vacuum pump has to reach and hold the level, the chiller has to keep the condenser cold enough to catch what the vacuum liberates, and the condenser has to have the area to do it at your evaporation rate. Undersize any one and the other two are wasted, which is the single most common configuration mistake we correct at quotation stage. Our guide on matching the vacuum pump and chiller to the evaporator covers how those three are sized against each other.

What is in an alcohol distillation kit, and is it legal?

“Alcohol distillation kit” is a search term that lands in two very different places. In the hobby market it means a boiler, a column and a condenser sold as a bundle for making spirits at home. In the lab market it means joint-matched glassware: a flask, a still head, a condenser and a receiver whose ground joints actually fit each other. The two are not interchangeable, and the mismatch is most of the confusion in this search result.

On legality, be direct with yourself before you shop. Distilling ethanol at home is licensed or restricted in many countries, and the rules differ by jurisdiction, by whether the product is for consumption or fuel, and by volume. Check your own national regulator before you buy anything, because the equipment is generally not what is regulated. The act is.

We build lab and process equipment: evaporation, concentration and solvent recovery for laboratories, pilot lines and production. We do not build beverage stills. If ethanol recovery from an extract is your process, the equipment above is the relevant family. If home spirits are the goal, we are the wrong supplier and would rather say so on this page than in an email three weeks later.

Frequently asked questions

Can you get 100% pure alcohol by distillation?

Not by ordinary distillation at atmospheric pressure. The ethanol-water azeotrope caps enrichment at roughly 95.6% ethanol by mass, because at that composition the vapor and the liquid have the same composition and no further enrichment happens. Going beyond it requires a different unit operation, such as molecular sieve dehydration, extractive or azeotropic distillation, pressure swing, or membrane pervaporation.

Is a rotary evaporator the same as a still?

No. A still is built to produce a distillate as the product. A rotary evaporator is built to remove and recover a solvent so that the residue survives, spinning the flask into a thin film and using vacuum to keep the bath temperature low. Our units position rotary evaporation for evaporation, concentration and solvent recovery, with vacuum and condenser support.

What vacuum level do your rotary evaporators reach?

-0.095MPa, on every model in the KRE-6010 to KRE-6050 automatic-lift range. That level is constant across the 10L, 20L, 30L and 50L flask sizes, so the boiling point you work at does not shift when you scale the batch up.

What size flask do I need to recover ethanol from a batch?

Start from the volume you charge, then check the collecting flask against the solvent volume you expect to remove. Our evaporating flasks run 10L, 20L, 30L and 50L, paired with 5L, 10L, 10L and 20L collectors respectively. If your expected recovery exceeds the collector, plan the drain cycle into the run rather than jumping a model size.

Why does the 50L model need a different power supply?

Bath heating. Total power climbs from 2800W on the KRE-6010 to 7800W on the KRE-6050, and the bath grows from φ350*H220 to φ550*H320 to hold the bigger flask. At that load the unit is specified at 380V/50Hz while the three smaller models run on 220V/50Hz.

Where to go from here

Decide which question you are actually asking first, because it picks the hardware for you. If ethanol is the product, you want stages and you accept the 95.6% ceiling. If ethanol is the solvent and something else is the product, you want vacuum, a cool bath and a condenser that keeps up, and the ceiling never enters the conversation. If the residue after solvent removal is heat-sensitive and still needs separating, you are looking at short-path work under high vacuum instead.

For the second case, size it in this order: flask volume against your batch, bath type against your solvent, then vacuum pump and chiller against your evaporation rate, and check the power supply before you fall in love with the 50L. Skip the KRE-6050 if your batches never exceed 20L, because you would be buying 7800W and a 380V install for headroom you never use. Send us the evaporation flask volume and solvent type, the required bath temperature and vacuum level, and your expected evaporation and recovery rate, and we will confirm the configuration against the parameter sheet. General purchasing questions are answered on our FAQ page.
