Liquid-Liquid Separation Equipment: A Complete Comparison

Liquid-liquid separation equipment splits two immiscible liquid phases using either density difference or vacuum evaporation. For a lab, the four workhorses are the separating funnel, the drum vacuum glass dispenser, the rotary evaporator, and molecular distillation. We build all four, and this comparison shows which one fits your feedstock, throughput, and heat sensitivity.

What counts as liquid-liquid separation equipment?

The term covers any device that separates one liquid from another. Two physical mechanisms are at work across the whole category, and knowing which one you rely on tells you most of what you need about the equipment.

The first mechanism is a density difference. Two immiscible liquids settle into layers, and you draw off the heavier one from the bottom. A separating funnel and a drum vacuum glass dispenser both work this way. No heat, no phase change, just gravity and a valve.

The second mechanism is evaporation under vacuum. You boil off the more volatile phase at a reduced pressure so it lifts away at a lower temperature, then condense and collect it. A rotary evaporator and a molecular distillation unit both do this. The vacuum is what protects the material and what defines the equipment.

Competitor round-ups tend to list these devices one paragraph each and leave you to guess where the boundaries sit. The table below draws those boundaries in one view, and every column maps to a decision you actually have to make.

The four devices, side by side

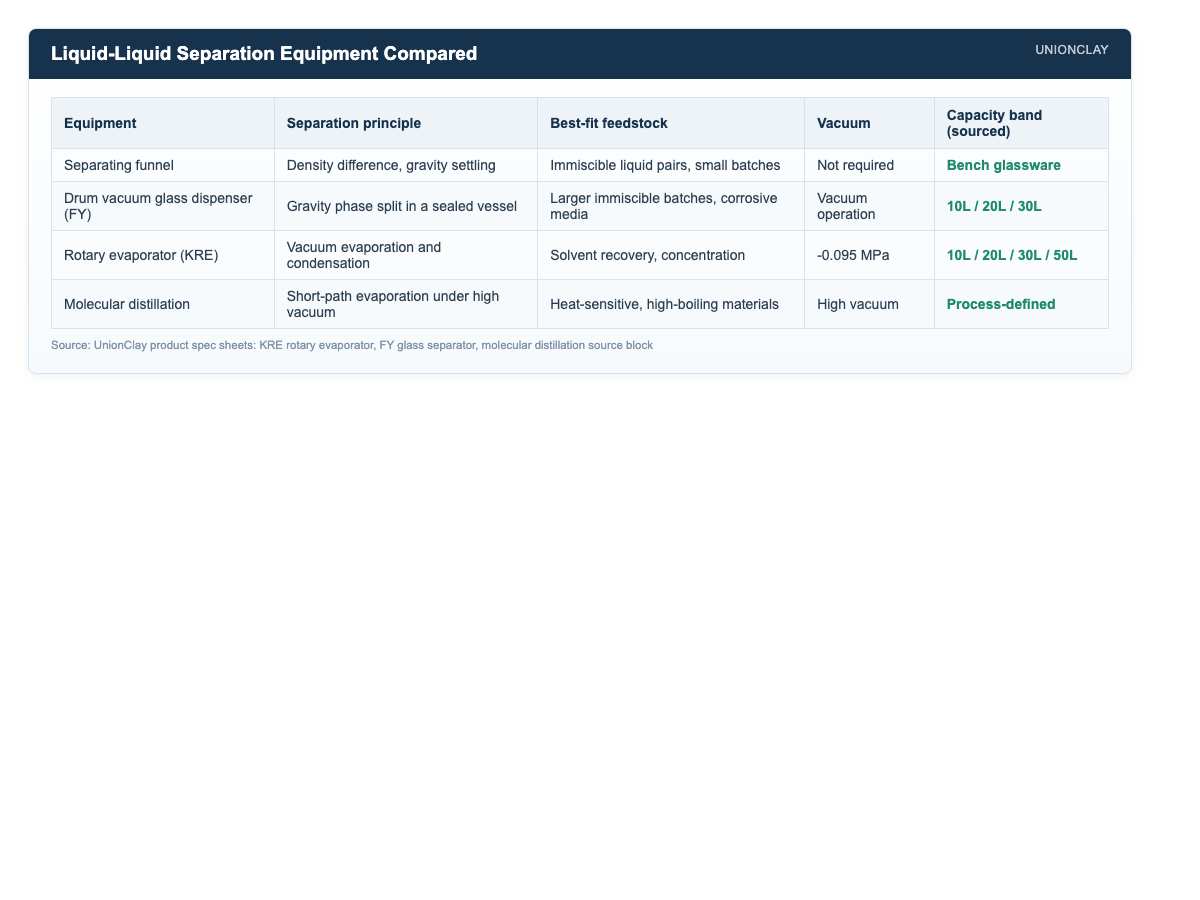

Here is the full picture before we walk each device. The capacity figures come straight from our product spec sheets; the principle and feedstock columns describe the physics, not a sales claim.

The split down the middle is the thing to notice. The top two rows separate liquids without changing their state. The bottom two rows evaporate one phase and recondense it. That single distinction decides most of your shortlist, so start there.

When is a separating funnel enough?

A separating funnel is the simplest tool in this group. You pour in your two-phase mixture, let it settle, and open the stopcock to drain the lower layer. It needs no power, no vacuum, and no condenser. For an immiscible pair that separates cleanly on standing, nothing else is justified.

The limits show up fast, though. A funnel is a batch device sized for the bench, so it does not scale to production volumes. And it only works when the two phases actually form distinct layers. If the separation is slow, the interface is fuzzy, or you need to recover a solvent rather than just decant a layer, gravity alone stops being enough. That is the point where the other three devices earn their place.

If your interest is the technique itself rather than the hardware, the extraction procedure follows a fixed sequence of pour, settle, vent and drain that we cover separately in this cluster.

Why move up to a drum vacuum glass dispenser?

When batch size grows past what bench glassware can hold, the drum type vacuum glass dispenser is the gravity-separation answer that scales. Our FY series is built in vessels of 10L, 20L and 30L, so you keep the same simple phase-split logic at a working volume.

The material spec is what makes it suitable for demanding chemistry. The FY source sheet lists thickened high borosilicate 3.3 glass with PTFE sealing and vacuum operation. Borosilicate 3.3 resists thermal shock and many aggressive media, and PTFE seals hold up where standard elastomers would degrade. So this is the device for corrosive or reactive liquids that you still want to separate by density, not by boiling.

Before you commit to a size, confirm the vessel volume, the vacuum requirement, the stirring speed, the discharge valve, the frame material and the pump matching. You can review the full drum type vacuum glass dispenser specifications or browse the wider glass liquid separator category to see the range.

What does a rotary evaporator do that gravity cannot?

A rotary evaporator does not separate layers. It evaporates the volatile phase under vacuum, condenses it, and collects it in a separate flask. That is a fundamentally different job from a funnel: you use it for solvent recovery and concentration, where the goal is to pull one liquid out of a mixture cleanly rather than pour off a settled layer.

Our KRE series runs the evaporating flask from 10L up to 50L, with a matched collecting flask, an electric bath lift on every model, and a brushless 250W drive motor. Vacuum sits at -0.095 MPa across the range, which is what lets you boil solvents well below their atmospheric boiling point and keep the product gentle. Rotation runs 20-120 rpm on the smaller models and 20-90 rpm on the 50L, keeping a thin, fast-renewing film on the flask wall.

The one number that changes most across the range is total power, and it drives your electrical planning more than the flask volume does.

Two practical consequences follow from that curve. The 10L model draws 2800W and runs on a standard 220V/50Hz supply. The 50L jumps to 7800W and a 380V/50Hz three-phase supply, so it is not a drop-in swap for a single-phase bench. Size the unit to the batch you actually run, then check that your power feed matches before it ships.

To confirm a configuration, check the flask volume, the condenser type, the vacuum pump, the cooling source, the bath temperature, the lift mode and the solvent characteristics together. See the full automatic lift rotary evaporator 10L-50L page, or the rotary evaporator category for adjacent sizes.

When do you need molecular distillation?

Molecular distillation is the specialist of the group. It runs short-path evaporation under high vacuum, which lowers the effective boiling temperature far enough to separate materials that would degrade in a conventional still. So this is the device for heat-sensitive or high-boiling-point materials that need gentle evaporation and condensation, not the everyday solvent-recovery job a rotary evaporator handles.

The structure follows the process. A molecular distillation unit combines an evaporator, a condenser, a receiving system and vacuum support, and the exact configuration is selected around the feed. Because the vacuum stability and the short evaporation path matter more here than raw volume, the technical sheet is confirmed per application rather than picked off a fixed size chart.

When you scope one, confirm the feed material, the vacuum stability, the heating temperature, the feed rate, the condenser support and the receiving setup. The molecular distillation equipment page and the parent distillation equipment category cover the options. If you are weighing this against a rotary evaporator specifically, our cluster piece on choosing between a rotary evaporator and molecular distillation for solvent recovery goes deeper on that exact trade-off.

How do you choose the right one?

Work through three questions in order, and the field narrows quickly.

First, does your mixture separate by density? If two immiscible layers form on standing and you only need to draw one off, stay in the gravity camp. A separating funnel handles bench batches; the FY drum vacuum glass dispenser handles 10L to 30L, and its borosilicate 3.3 and PTFE build is what you want for corrosive media.

Second, do you need to recover or concentrate a solvent? Then you are evaporating, not decanting, and the rotary evaporator is the default. Match the flask to your batch across the 10L-50L range, and confirm your power supply, because the 50L needs 380V where the smaller models run on 220V.

Third, is the material heat-sensitive or high-boiling? If ordinary vacuum evaporation would still cook it, step up to molecular distillation and its high-vacuum short path. For a broader walkthrough across product families, our equipment selection guide puts these decisions in one place.

FAQ

What is the difference between a separating funnel and a rotary evaporator?

A separating funnel splits two immiscible liquids by density with no heat or vacuum, and you drain the lower layer through a stopcock. A rotary evaporator instead evaporates the volatile phase under vacuum and condenses it into a separate flask, which is what you use for solvent recovery and concentration rather than simple decanting.

Can a rotary evaporator separate immiscible liquids?

Not by settling. A rotary evaporator works by boiling off and condensing the more volatile component under vacuum, so it separates by volatility, not by density. If your two phases simply form layers, a separating funnel or a drum vacuum glass dispenser is the correct tool; the rotary evaporator earns its place when you need to recover a solvent.

What vacuum level does the KRE rotary evaporator reach?

The KRE rotary evaporator range operates at -0.095 MPa across all four flask sizes, from the 10L KRE-6010 to the 50L KRE-6050. That reduced pressure lets solvents evaporate well below their atmospheric boiling point, which protects heat-sensitive product during concentration.

Why does the 50L rotary evaporator need a different power supply?

Total power climbs with flask size on the KRE range, from 2800W at 10L to 7800W at 50L. The 50L KRE-6050 draws enough that it runs on a 380V/50Hz three-phase supply, while the 10L, 20L and 30L models run on 220V/50Hz. Confirm your available supply before ordering the larger unit.

When should I choose molecular distillation over a rotary evaporator?

Choose molecular distillation when the material is heat-sensitive or high-boiling and a conventional vacuum evaporation would still degrade it. Its short evaporation path under high vacuum lowers the effective boiling temperature further than a rotary evaporator can, so it protects delicate compounds. For routine solvent recovery, the rotary evaporator remains the simpler and more economical choice.

Choosing your configuration

The shortlist comes down to how your liquids behave. Separate by density and you stay with a funnel or the FY glass dispenser; separate by volatility and you move to the rotary evaporator, or molecular distillation when heat sensitivity forces a gentler path. Whichever row of the comparison table you land in, confirm the working volume, the vacuum requirement and the power supply against your process before you commit. If you are unsure where your material falls, our equipment FAQ covers the common edge cases, and we can review your feed conditions and confirm a configuration with you.
