What Is Vacuum Filtration? Principle and Lab Uses

Vacuum filtration pulls liquid through a filter medium by lowering the pressure under the filter instead of waiting on gravity. A pump evacuates the receiver, atmospheric pressure pushes the slurry down, and continued airflow dries the cake. Our units pull to -0.095 MPa, which is already close to the practical ceiling for the method.

On this page

• What is the actual physics behind vacuum filtration?
• What does a vacuum filtration setup consist of?
• Why use vacuum instead of gravity filtration?
• Where does vacuum filtration get used in the lab?
• When does vacuum filtration stop working?
• What does the hardware look like above bench scale?
• Stainless, PP or ceramic: which funnel material fits your slurry?
• FAQ

What is the actual physics behind vacuum filtration?

Nothing sucks. That sentence annoys people, but it is the whole principle. A vacuum pump does not reach into the funnel and pull the filtrate out. It removes air from the receiving flask, and the atmosphere sitting on top of your slurry does the work by pushing down through the filter medium into the low-pressure space below.

That distinction matters because it tells you exactly how much force you have to play with, and the answer is: not much, and it never gets bigger. The gauge on our filtration units reads down to -0.095 MPa. That is within a whisker of absolute vacuum — there is nothing left to remove. Once you are there, the pressure difference across the filter cake is capped at roughly one atmosphere no matter what pump you bolt on. A bigger pump gets you to that ceiling faster and holds it against leaks. It does not raise the ceiling.

We say this on almost every filtration enquiry we handle. Customers who are filtering slowly usually assume they need more vacuum. Far more often they need more filter area, a coarser medium, or a different cake structure — because the driving force is already maxed out and the resistance is the variable they can still change.

The rest is Darcy’s law in plain English: flow rate rises with pressure difference and filter area, and falls with cake thickness, cake resistance and viscosity. Three of those five terms are set by the hardware you choose. That is why this article ends up talking about funnel diameters.

What does a vacuum filtration setup consist of?

Every vacuum filtration setup, from a bench rig to a 100 L pilot unit, is the same five things in a line:

• A funnel with a perforated support plate. Büchner funnels are the standard. The plate holds the medium; it does not do the separating.
• A filter medium. Paper, cloth, mesh or membrane, sitting on the plate. This is what actually decides your cut.
• A sealed joint. A gasket or cone between funnel and receiver. Leaks here kill more filtrations than pump capacity ever will.
• A receiver rated for negative pressure. Our units use GG3.3 borosilicate glass flasks, sized to match the funnel — a 10 L funnel over a 10 L flask, a 50 L funnel over a 50 L flask.
• A vacuum pump, matched to the job. Water aspirator, diaphragm, or oil-sealed rotary vane depending on your solvent.

Here is the detail people miss. On our stainless units the support plate pore diameter is 4 mm. Four millimetres. That is not the separation size — you are not filtering 4 mm gravel. Those holes exist to let filtrate through while supporting the filter cloth across a φ300 to φ500 mm span without it sagging or tearing under a full atmosphere of load. The cloth or paper you lay on top is what sets the retention. If you have ever wondered why a plate spec sheet quotes a pore size that seems absurdly coarse, that is why.

Why use vacuum instead of gravity filtration?

Two reasons, and only one of them is speed.

Speed is the obvious one. A gravity filtration is driven by the height of liquid in the funnel — centimetres of head. A vacuum filtration is driven by the whole atmosphere pressing on the slurry. That is not a marginal difference, and it is why a filtration that would occupy an afternoon finishes while you are labelling the flask.

The second reason is the one that actually decides most process work: cake dryness. When the last of the liquid clears the cake surface in a gravity funnel, the filtration stops. In a vacuum funnel it does not stop — air keeps rushing through the cake, and that airflow strips interstitial liquid out of the pores. You pull a cake that is drying rather than a cake that is sitting wet. If your next step is a vacuum oven or a weighing, that pre-drying is worth more than the time saved.

The trade is selectivity. Gravity filtration is gentle. Vacuum filtration is not, and if you are handling a fragile crystal habit or an amorphous solid that compresses, the same force that speeds you up will destroy the thing you are trying to isolate. We cover that decision in detail in our vacuum filtration equipment selection guide, which walks the funnel capacity, receiver volume and pump matching in the order you should confirm them.

Where does vacuum filtration get used in the lab?

The honest answer is: anywhere a solid has to leave a liquid and somebody is in a hurry. The common cases we build equipment for:

Recrystallisation. The classic. Hot filtration to remove insolubles, then a cold vacuum filtration to collect the crystals and wash them with chilled solvent. The airflow at the end is what gives you a cake dry enough to weigh without a long oven step.

Catalyst recovery. After a hydrogenation or any heterogeneous catalysis run, the catalyst has to come out of the reaction mass. Vacuum filtration does it in one operation, and the cake is dry enough to handle. This is where scale bites: a 20 L reaction does not go through a bench funnel.

Gravimetric analysis. Anything where you filter, dry and weigh. Reproducibility depends on cake dryness being reproducible, which means airflow through the cake has to be reproducible, which means your vacuum has to hold steady rather than drift with a leaking joint.

Clarification before instrumental analysis. Pulling particulates out of a sample before it goes near an HPLC column or a spectrophotometer cell.

Washing and de-liquoring pigments, clays and precipitates. Filter, wash the cake in place, pull air through, repeat. The whole cycle happens in the funnel without ever resuspending the solid.

Pilot-scale API and intermediate isolation. The point where the lab technique becomes a piece of process equipment, which is the next section.

When does vacuum filtration stop working?

Four failure modes, in the order we see them:

Your solvent boils. Reduce the pressure over a volatile solvent and you lower its boiling point. Diethyl ether, dichloromethane and acetone will start flashing off under a strong vacuum, which cools the cake, pulls solvent into your pump, and in the worst case leaves you with a cake that is drying because it is boiling rather than because it is filtering. If your solvent is volatile, throttle the vacuum instead of running flat out at -0.095 MPa.

The medium blinds. Fine or gelatinous solids plug the pores of the filter medium in the first seconds. Flow collapses, and pulling harder just packs it tighter. More vacuum is precisely the wrong answer here. Filter aid, a coarser medium, or a different separation entirely is the right one.

The cake cracks and channels. As the cake dries under airflow it shrinks, and if it shrinks away from the funnel wall the air stops going through the cake and starts going around it. You lose all wash efficiency and all further de-liquoring. Watch for it, and tamp or reduce vacuum before it opens up.

You outgrow the glassware. This is the boring one and by far the most common. The technique scales fine; the bench hardware does not.

What does the hardware look like above bench scale?

Almost every article ranking for this term explains the Büchner funnel and stops at glassware, as though vacuum filtration lives permanently on a bench flask. It does not. The moment your batch is a reactor discharge rather than a beaker, you are buying a floor-standing unit, and the numbers change character: instead of a funnel diameter you are choosing filter area, receiver volume and a material grade.

These are the real specs from the units we build. Nothing here is a category average.

Read that table sideways rather than down and it tells you something about the method. Going from ZF-10L to ZF-50L multiplies funnel capacity by five, but the funnel diameter only goes from φ300 to φ500 mm — the height carries the rest, from H200 to H280. Filter area scales with the square of diameter, so five times the volume is nowhere near five times the area. Your cake gets deeper. Deeper cake means more resistance, and the driving force is still capped at one atmosphere. That is the scale-up trap in one row of numbers: volume scales cheaply, filtration rate does not. If you are sizing from a bench trial, size on cake thickness, not on batch volume.

Two more rows worth your attention. Packing weight goes 33, 39.5, 48, 52 kg across the range — these are floor units on lockable universal casters, not something that clamps to a lattice frame, and you need to have decided where it lives before it arrives. And the receiver is GG3.3 borosilicate throughout, matched 1:1 to funnel capacity, which is the right default: you can see the filtrate, and borosilicate takes the thermal shock of a hot filtration without complaint.

If your slurry is broadly compatible with 300-series stainless, the stainless steel vacuum filtration unit runs this 10 L to 50 L funnel ladder and pulls to -0.095 MPa, and the range extends to 100 L above the models shown here.

Stainless, PP or ceramic: which funnel material fits your slurry?

Material is where the selection actually gets decided, and it is not a preference — it is set by what is in your liquid.

The stainless funnels are specified as 201/304/316, and those three grades are not interchangeable. 201 is the economy grade for benign, non-chloride duty. 304 is the general default. 316 is what you specify when chlorides or the more aggressive process streams are in play. Ordering “stainless” without naming the grade is how people end up with pitting on a unit that was never quoted for the service. Name the grade against your actual chemistry.

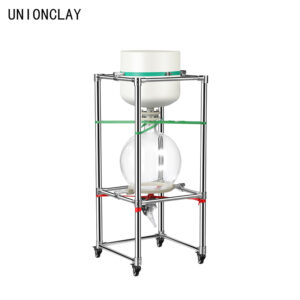

When stainless is wrong regardless of grade — strong acids, halide-loaded streams, anything that will attack a passive layer — the body material has to change rather than the grade. The PP-bodied unit covers the same 10 L to 100 L range in polypropylene for exactly those services. And where the duty is abrasive or the chemistry is hostile to both metal and plastic, the ceramic version of the same unit is the one to look at. All three sit together in the vacuum filtration equipment range if you want to compare configurations side by side.

We are deliberately not printing a chemical-compatibility matrix here, because a generic one would be worse than useless against your specific stream, temperature and concentration. Send us the composition and we will confirm the grade against it. The order to confirm anything in is fixed, and it is the same order our source sheet uses: funnel capacity, receiver volume, material grade, vacuum connection, discharge method, pump requirement. Skip a step and you will be revisiting it later. Our selection guide covers how these confirmations run across the equipment lines.

FAQ

Is vacuum filtration faster than gravity filtration?

Substantially, yes. Gravity gives you a driving force equal to the height of liquid in the funnel; vacuum gives you close to a full atmosphere. Our units reach -0.095 MPa. The second advantage matters just as much: airflow keeps passing through the cake after the liquid clears, so the cake comes off partly de-liquored rather than soaking wet.

Why is the funnel pore diameter 4 mm if I am filtering fine solids?

Because the 4 mm holes are in the support plate, not in the filter medium. The plate’s job is to hold your filter cloth or paper flat across a φ300 to φ500 mm span while an atmosphere of pressure presses down on it. The cloth on top of the plate is what determines what gets retained.

Do I need a stronger pump to filter faster?

Usually not. Once you are at -0.095 MPa there is essentially no vacuum left to gain, and the pressure difference across the cake cannot exceed about one atmosphere no matter what you fit. A larger pump reaches that ceiling faster and holds it against small leaks. If the filtration is still slow, the resistance is in the cake or the medium, and that is what you change.

Can I run a vacuum filtration with a volatile solvent?

You can, with the vacuum throttled back. Lowering the pressure lowers the solvent’s boiling point, so at full vacuum a low-boiling solvent will flash off, chill the cake and load your pump. Reduce the vacuum, use a solvent-resistant pump, and put a trap between the receiver and the pump.

How do I know what size unit to buy?

Size on cake thickness from a bench trial, not on batch volume. Funnel capacity climbs faster than filter area does across the ZF-10L to ZF-50L range, so a unit chosen purely on litres will hand you a deeper cake and a slower filtration than your trial predicted. Confirm funnel capacity, receiver volume, material grade, vacuum connection, discharge method and pump requirement in that order — our equipment FAQ answers the configuration questions that come up most often.

Where to start

If you are on a bench and your batches never leave the litre range, stay on glassware — a floor unit on casters is the wrong answer to that problem. The line worth crossing is when a reactor discharge, not a beaker, is what arrives at the funnel.

At that point the decision runs in three moves. Pick the material from your chemistry first, because it is the only choice that cannot be corrected later: name the stainless grade, or go to PP or ceramic if the stream will not tolerate steel. Then pick the size from your bench cake thickness rather than your batch volume — ZF-30L with a shallow cake will out-filter ZF-50L with a deep one, every time. Then match the pump to the solvent, not to the ambition; -0.095 MPa is the ceiling, and nothing you buy will beat it.

Send us the slurry composition, the batch volume and the cake behaviour you saw on the bench, and we will confirm the configuration against the parameter sheet rather than guessing at it.
