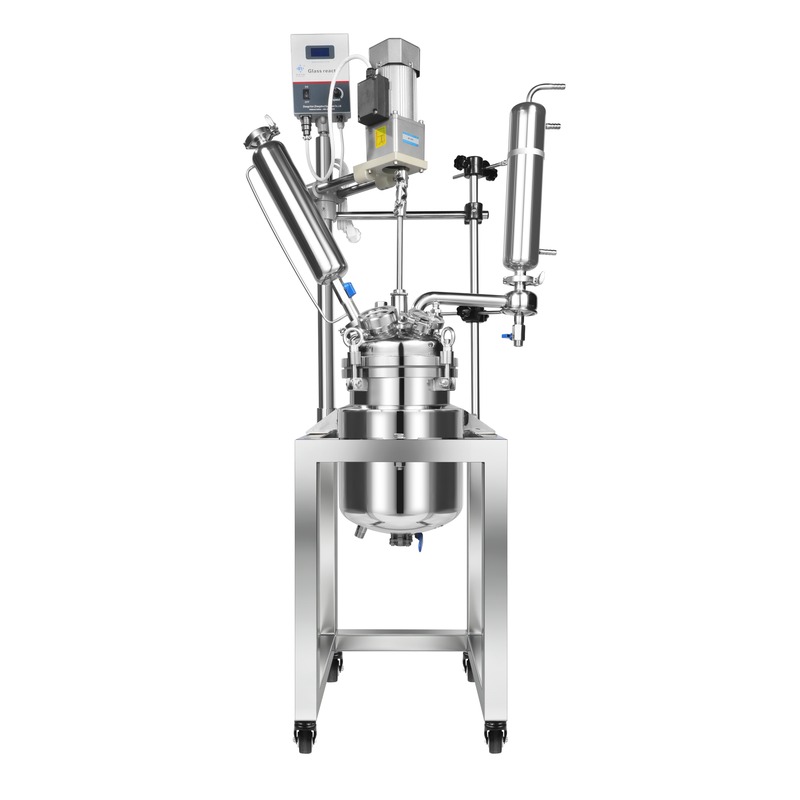

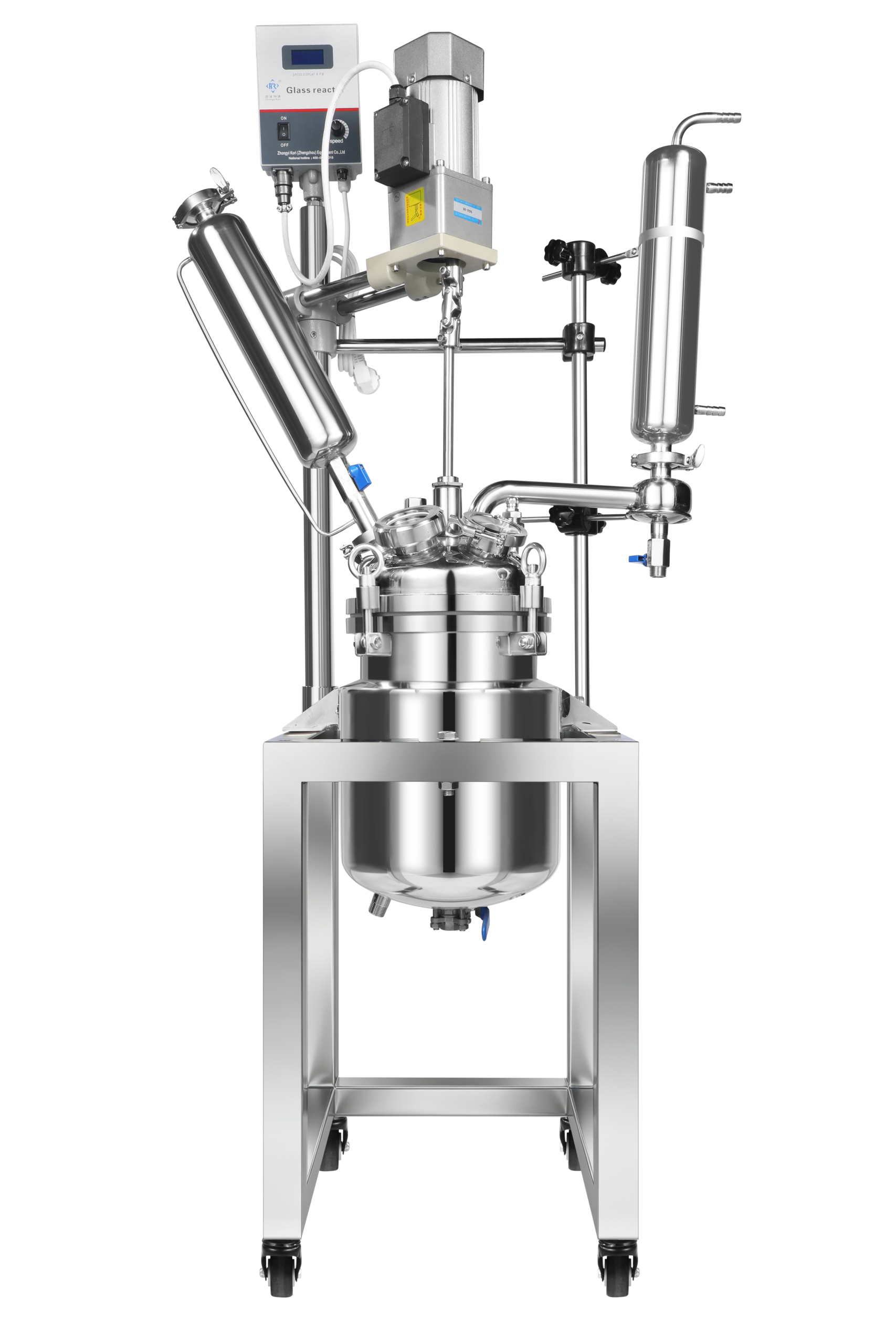

BSF-5L Double-layer Stainless Steel Reactor
BSF-5L Double-layer Stainless Steel Reactor
BSF-5L Double-layer Stainless Steel Reactor. Model: BSF-5L; Capacity: 5 L; Power supply: 220 V/50 Hz, customizable 110 V/60 Hz; Motor: 90 W; Electrical Mo.
✓ CE Certified · 1-Year Warranty
✓ 7–15 Day Factory Delivery
✓ OEM / ODM · Export to 40+ Countries
product details
BSF-5L Double-layer Stainless Steel Reactor Overview
BSF-5L Double-layer Stainless Steel Reactor is listed from the customer-supplied stainless steel reactor parameter table. The technical data below is translated model by model from the original customer sheet, including lid ports, vessel data, electrical configuration and accessories.
Technical Specifications
| Name | Double-layer stainless steel reactor |
|---|---|
| Model | BSF-5L |
| Reactor lid Diameter | ID Φ220 mm, OD Φ237 mm flange port |
| Reactor lid Port A | Φ50 mm flange port(stirring port)/ID Φ35 mm |
| Reactor lid Port B | KF16(constant-pressure funnel) |
| Reactor lid Port C | KF25(reflux + condensation) |
| Reactor lid Port D | KF16(thermometer sleeve/length 300 mm) |
| Reactor lid Port E | KF16(feeding valve) |
| Reactor lid Port F | OD Φ57mm/ID Φ51 mm(illuminated sight glass) |
| Reactor lid Port G | KF40(solid charging port) |
| Reactor lid Port H | None |
| Reactor vessel Material | stainless steel |
| Reactor vessel Capacity | 5 L |
| Reactor vessel Vessel size (mm, ID x OD x H) | OD Φ254*H320 |
| Reactor vessel Jacket inlet/outlet (circulation port) | 4 male thread/KF25 clamp ferrule |
| Electrical Motor | 90 W |

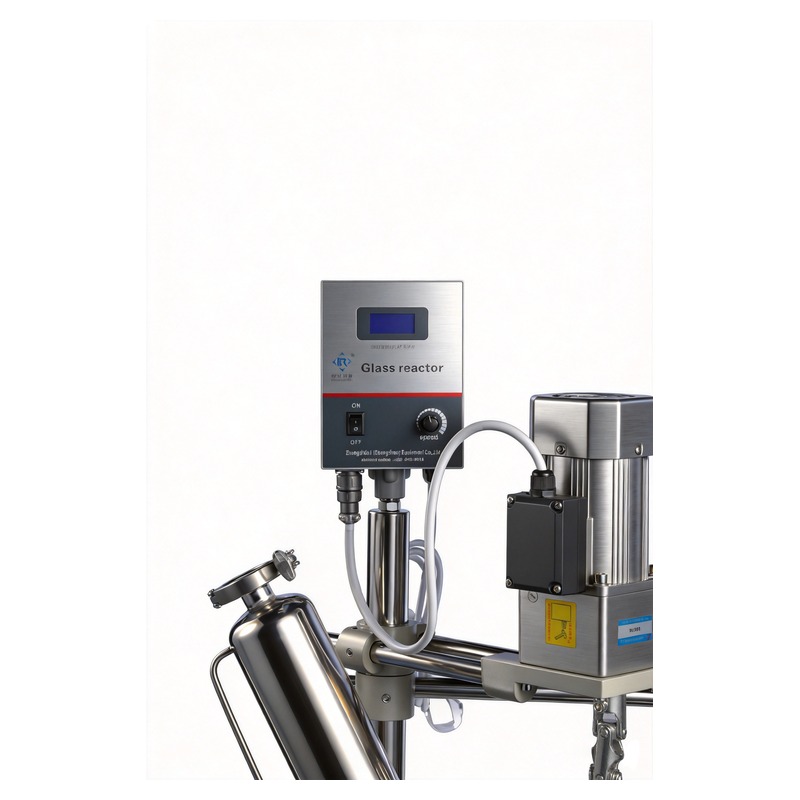

| Electrical Controller | LCD digital display for temperature and speed |
| Electrical Stirring speed | 60-1000 rpm |
| Accessories Constant-pressure funnel capacity | ml(1/2/3 Lsame configuration) |
| Accessories Condenser specification (mm) | Φ76*L340/tube bundle |
| Accessories Condenser vacuum/circulation ports | 12 mm barbed connector |
| Accessories Stirring shaft specification (mm) | Φ8*L600*(blade span)110 |
| Accessories Stirring shaft material | stainless steel |
| Accessories Impeller type | two-blade anchor type |
| Accessories Bottom discharge Material | stainless steel |
| Accessories Bottom discharge Height | approx.390 mm |
| Accessories Discharge valve connector | None |
| Reactor frame Reactor frame | stainless steel frame type |
| Working dimensions (mm) Working dimensions (mm) | 610*500*1400 |
| Vacuum degree Vacuum degree | vacuum can reach-0.095 MPa |
| Power supply Power supply | 220 V/50 Hz, customizable 110 V/60 Hz |
| Base plate size (mm) Base plate size (mm) | None |
| Rear support rod height Rear support rod height | None |
| Vessel support rod(length) Vessel support rod(length) | None |
| constant-pressure funnel(upper port) constant-pressure funnel(upper port) | None |
| Horizontal/vertical/rear rods (mm) Horizontal/vertical/rear rods (mm) | 300/650/None |
Configuration Notes
- Port standards such as flange, KF clamp, threaded union and barbed connector are translated from the original customer table.
- Final drawings, port orientation and optional customization should be confirmed before quotation.
Before Quotation
- Confirm working volume, material contact requirements, vacuum/pressure conditions and matched process.
- Confirm voltage, stirring configuration, condenser connection and discharge requirements.
Content basis: customer stainless steel reactor parameter table from the May 27 UnionClay material folder.
BSF-5L Double-layer Stainless Steel Reactor Application and Selection Guide
Use BSF-5L Double-layer Stainless Steel Reactor when comparing stainless steel reactor, jacketed stainless steel reactor, pilot reactor for jacketed reaction, mixing and process development where metal construction and matched temperature control are required. This section brings together source-backed details, system-fit notes, and quote-preparation points so procurement teams can review the model in context.
Use the details below to confirm fit before quotation. The source-backed notes, process-fit guidance, and related equipment links are organized for buyer review.
Source-backed details to review
- Model: BSF-5L
- Name: Double-layer stainless steel reactor
- Reactor vessel Capacity: 5 L
- Reactor vessel Capacity: 5 L
- Power supply Power supply: 220 V/50 Hz, customizable 110 V/60 Hz
- Vacuum degree Vacuum degree: vacuum can reach-0.095 MPa
- Reactor vessel Material: stainless steel
- Process role: Stainless reactors are selected when metal construction, stirring and temperature-control connections are required.
- Selection basis: Confirm working volume, material requirement, lid ports, stirring speed, condenser or feeding configuration and jacket connection.
How this model fits into a process system
Use this page to compare the model against nearby UnionClay products, then match it with reactors, chillers, heating and cooling circulators, vacuum pumps, filtration units, rotary evaporators or distillation systems according to the process route. The best choice depends on working volume, material compatibility, lid ports, stirring speed, condenser or feeding configuration, temperature-control connection and cleaning needs.
Before requesting a quote
Share the target capacity, working medium, temperature or vacuum requirement, voltage, connector requirements and any customization needs. UnionClay can use those details for model matching, equipment selection and project quotation support.
This content uses UnionClay customer reactor parameter sheets and the product specification table already published on this page.
Model Selection and Related Equipment
Compare BSF-5L Double-layer Stainless Steel Reactor with related UnionClay equipment when planning laboratory, pilot and chemical process applications. The links below connect the product family, nearby models, compatible support equipment, and the quote path in one place.
Use these links to move through the product-selection path without breaking context: category overview, adjacent models, matched support equipment, and UnionClay quotation.
- View Stainless Reactor
- Compare with BSF-200L Double-layer Stainless Steel Reactor
- Compare with BSF-150L Double-layer Stainless Steel Reactor
- Compare with BSF-100L Double-layer Stainless Steel Reactor
- Explore Heating and Cooling Integrated Machine
- Explore Recirculating Chiller
- Match with DFY-50-40 Heating and Cooling Integrated Machine
- Match with DLSB-50-40 Sealed Recirculating Chiller
- Request model selection support
Related guides
FAQ for BSF-5L Double-layer Stainless Steel Reactor
How do I choose this model?
Choose according to working volume, temperature range, material compatibility, connection requirements, voltage and process conditions. UnionClay can help compare nearby models in the same product series.
Which equipment is commonly used together with this product?
Depending on the process, this product can be matched with reactors, chillers, heating and cooling circulators, vacuum pumps, filtration equipment, rotary evaporators or distillation systems from UnionClay.
Can UnionClay support quotation and model matching?
Yes. Share target capacity, medium, temperature range, vacuum requirement, voltage and application details, and UnionClay will support model selection and quotation.
