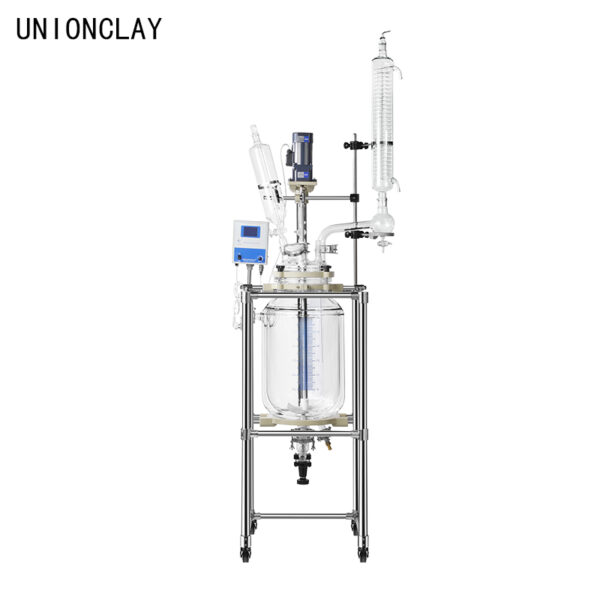

Double Layer Jacketed Glass Reactor 10L-100L
Double Layer Jacketed Glass Reactor 10L-100L
Double Layer Jacketed Glass Reactor 10L-100L for laboratory and pilot-scale process equipment applications. Contact Union Clay for model selection, configuration confirmation and quotation support.
✓ CE Certified · 1-Year Warranty
✓ 7–15 Day Factory Delivery
✓ OEM / ODM · Export to 40+ Countries
product details
Double Layer Jacketed Glass Reactor 10L-100L Overview
Double Layer Jacketed Glass Reactor 10L-100L is listed based on the client parameter sheet and current product image set. Model selection and final configuration should be confirmed according to the required capacity and operating conditions.
Parameter Reference
Name double-layer glass reactor double-layer glass reactor double-layer glass reactor; Model SF-200L SF-150L SF-100L; reactor lid diameter 340mm 340mm 340mm; port A 60#flange port for stirring 60#flange port for stirring 60#flange port for stirring; B 40#ground joint for constant pressure funnel 40#ground joint for constant pressure funnel 40#ground joint for constant pressure funnel; C 34#ground joint for piston valve 34#ground joint for piston valve 34#ground joint for piston valve; D S50spherical ground joint for reflux+condensation) S50spherical ground joint for reflux+condensation) S50spherical ground joint for reflux+condensation)
Before Quotation
Please confirm required capacity, material contact requirements, temperature or vacuum conditions, utility supply and any customized options before quotation.
Parameter Reference
| Model | SF-10L | SF-20L | SF-30L | SF-50L | SF-100L |
|---|---|---|---|---|---|
| Material | GG3.3 borosilicate glass | GG3.3 borosilicate glass | GG3.3 borosilicate glass | GG3.3 borosilicate glass | GG3.3 borosilicate glass |
| Capacity | 10L | 20L | 30L | 50L | 100L |
| Pressure range | Normal or negative pressure; no positive pressure | Normal or negative pressure; no positive pressure | Normal or negative pressure; no positive pressure | Normal or negative pressure; no positive pressure | Normal or negative pressure; no positive pressure |
| Vacuum | up to -0.095MPA | up to -0.095MPA | up to -0.095MPA | up to -0.095MPA | up to -0.095MPA |

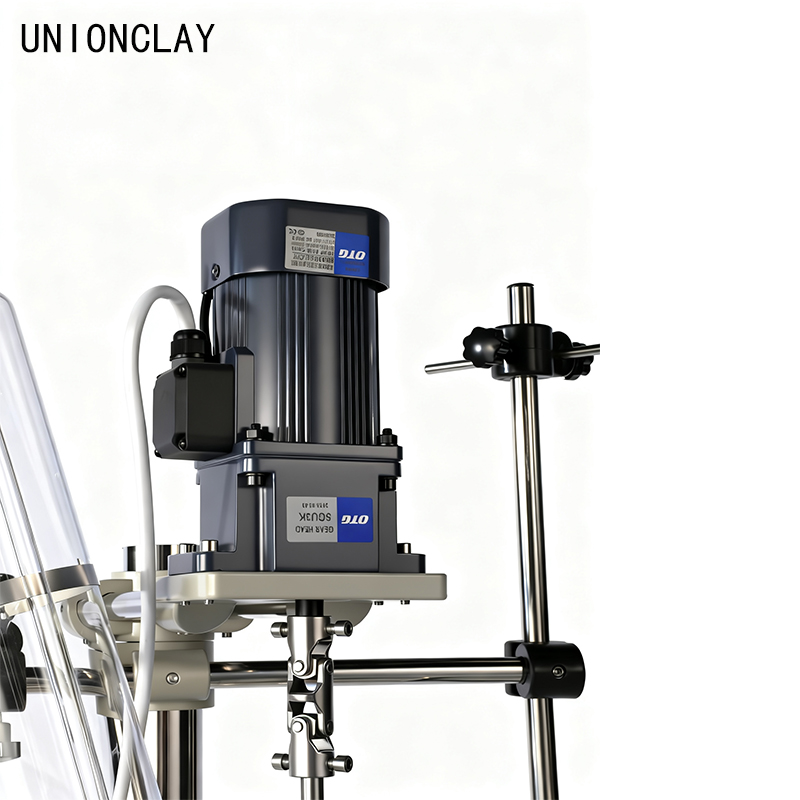

| Motor power | 90W 1/3 (reduction) | 90W 1/3 (reduction) | 90W 1/3 (reduction) | 120W 1/3 (reduction) | 250W 1/3 (reduction) |
| Controller | Dual digital display (speed & temperature) | Dual digital display (speed & temperature) | Dual digital display (speed & temperature) | Dual digital display (speed & temperature) | Dual digital display (speed & temperature) |
| Stirring speed | 60-600r/min | 60-600r/min | 60-600r/min | 60-600r/min | 60-600r/min |
| Constant-pressure funnel | 1L | 1L | 2L | 2L | 2L |
| Power supply | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Specification translated from the customer-supplied May parameter file; confirm final configuration against the quotation.
Double Layer Jacketed Glass Reactor 10L-100L Application and Selection Guide
Use Double Layer Jacketed Glass Reactor 10L-100L when comparing double layer glass reactor, jacketed glass reactor, chemical reactor for controlled reactions using a jacketed vessel connected to a chiller or heating circulator. This section brings together source-backed details, system-fit notes, and quote-preparation points so procurement teams can review the model in context.
Use the details below to confirm fit before quotation. The source-backed notes, process-fit guidance, and related equipment links are organized for buyer review.
Source-backed details to review
- Process role: Double-layer glass reactors are selected when a jacketed vessel needs circulation support from a chiller or heating circulator.
- Selection basis: Confirm vessel volume, jacket connections, circulation equipment, stirrer configuration and vacuum condition.
How this model fits into a process system
Use this page to compare the model against nearby UnionClay products, then match it with reactors, chillers, heating and cooling circulators, vacuum pumps, filtration units, rotary evaporators or distillation systems according to the process route. The best choice depends on volume, jacket connections, circulation equipment, vacuum condition, condenser requirement and stirrer configuration.
Before requesting a quote
Share the target capacity, working medium, temperature or vacuum requirement, voltage, connector requirements and any customization needs. UnionClay can use those details for model matching, equipment selection and project quotation support.
This content uses UnionClay customer reactor parameter sheets and the product specification table already published on this page.
Model Selection and Related Equipment
Compare Double Layer Jacketed Glass Reactor 10L-100L with related UnionClay equipment when planning laboratory, pilot and chemical process applications. The links below connect the product family, nearby models, compatible support equipment, and the quote path in one place.
Use these links to move through the product-selection path without breaking context: category overview, adjacent models, matched support equipment, and UnionClay quotation.
- View Double Layer Reactor
- Compare with Double Layer Jacketed Glass Reactor 1L-3L
- Compare with Double Layer Jacketed Glass Reactor 5L
- Explore Recirculating Chiller
- Explore Heating and Cooling Integrated Machine
- Match with DLSB-50-40 Sealed Recirculating Chiller
- Match with DFY-50-40 Heating and Cooling Integrated Machine
- Request model selection support
Related guides
FAQ for Double Layer Jacketed Glass Reactor 10L-100L
How do I choose this model?
Choose according to working volume, temperature range, material compatibility, connection requirements, voltage and process conditions. UnionClay can help compare nearby models in the same product series.
Which equipment is commonly used together with this product?
Depending on the process, this product can be matched with reactors, chillers, heating and cooling circulators, vacuum pumps, filtration equipment, rotary evaporators or distillation systems from UnionClay.
Can UnionClay support quotation and model matching?
Yes. Share target capacity, medium, temperature range, vacuum requirement, voltage and application details, and UnionClay will support model selection and quotation.
