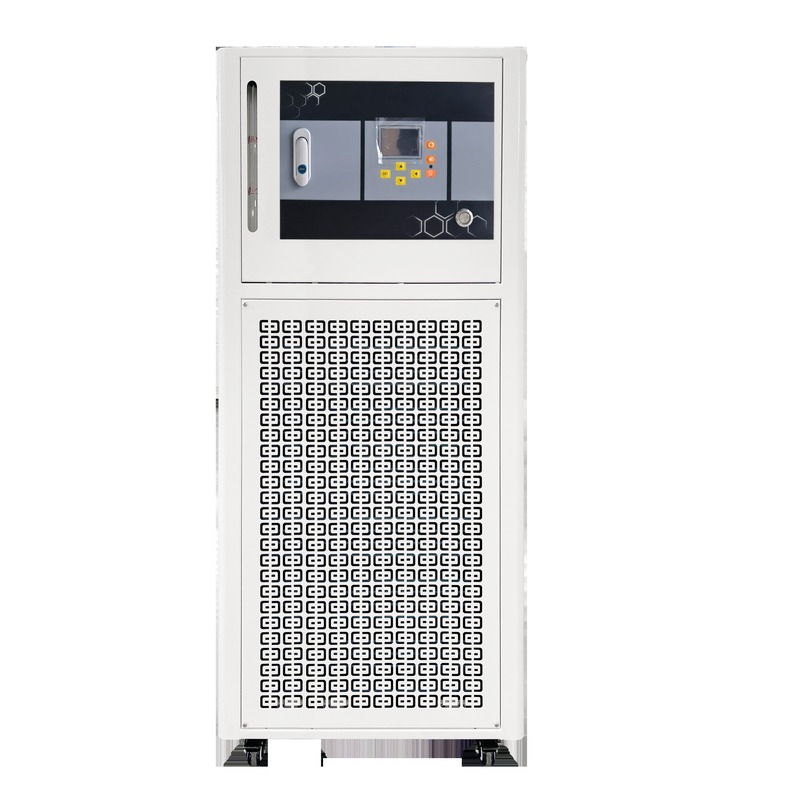

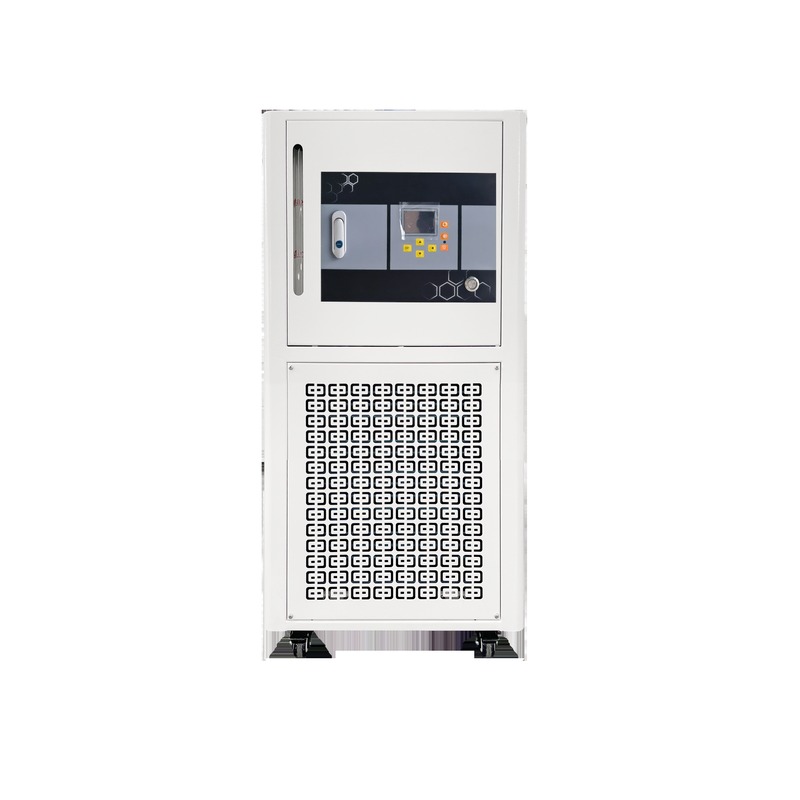

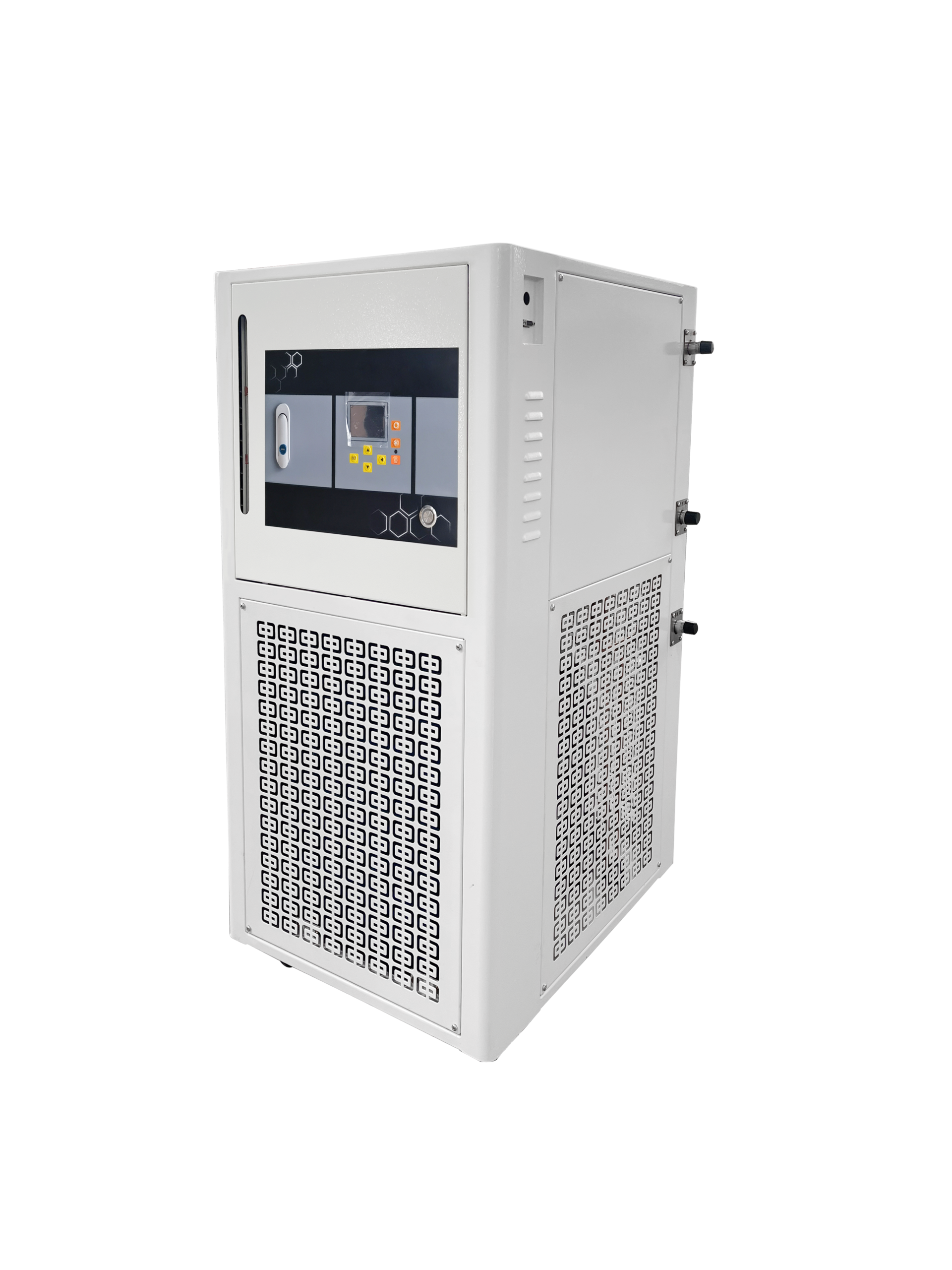

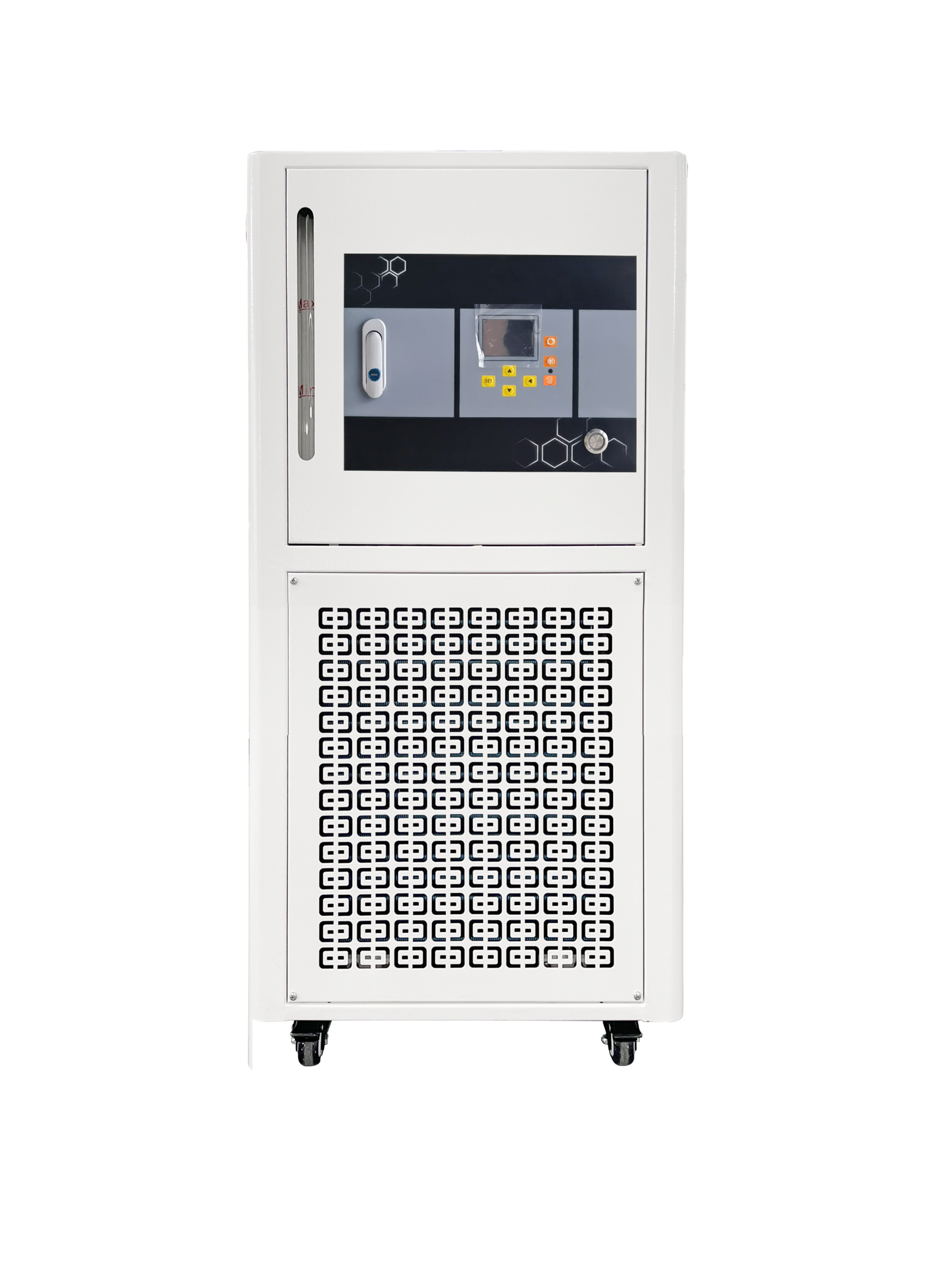

GDX-30-30 Heating and Cooling Integrated Machine
Temperature range: -30℃ to 200℃; Voltage: 220V±10% 50Hz; Total power: 6.3KW; Model: GDX-30 30 Technical parameters
product details
GDX-30-30 Heating and Cooling Integrated Machine Overview
GDX-30-30 Heating and Cooling Integrated Machine is listed from the customer-supplied May 27 parameter document. The specification below is translated from the source table/document and should be confirmed against the final quotation configuration.
Parameter Reference
| Model | GDX-30 30 Technical parameters |
|---|---|
| Type | fully enclosed |
| Temperature range | -30℃ to 200℃ |
| Voltage | 220V±10% 50Hz |
| Total power | 6.3KW |
| Total current | 28.1A |
| Temperature sensor | PT100 |
| Reservoir volume | 10L |
| Matched reactor | 30L |
| Temperature stability | ±1℃ |
| Control accuracy | ±1℃ |
| Safety protection | over-pressure, delay, over-current, overheat and leakage protection |
Before Quotation
- Confirm model, voltage, target temperature range and matched reactor or process volume.
- Confirm installation environment, cooling mode and utility conditions.
- Request final drawing and configuration sheet before order confirmation.
Content basis: customer technical document from the May 27 Union Clay material folder.
Linked Reference: Heating and Cooling Circulator
This product family is used where a process needs both heating and cooling in one circulation system. The linked reference groups dynamic temperature control, high/low temperature integrated machines, TCU-style temperature control units and related heating/cooling circulators under the same temperature-control equipment route.
Use this section as a product-family explanation only; exact model values on this page remain based on the Union Clay May 27 parameter document.
GDX-30-30 Heating and Cooling Integrated Machine Application and Selection Guide
GDX-30-30 Heating and Cooling Integrated Machine is positioned for buyers searching for heating and cooling integrated machine, dynamic temperature control system, reactor temperature control with clear model-level specifications rather than a generic catalog listing. It is most relevant for closed-loop heating and cooling control for jacketed reactors, pilot systems and process development.
For SEO and AI search context, the key entity on this page is heating and cooling integrated machine from UnionClay, supported by model data, quotation guidance and internal links to related equipment families.
Source-backed details to review
- Model: GDX-30 30 Technical parameters
- Temperature range: -30℃ to 200℃
- Type: fully enclosed
- Voltage: 220V±10% 50Hz
- Total power: 6.3KW
- Total current: 28.1A
- Temperature sensor: PT100
- Temperature-control role: UnionClay source material positions heating and cooling integrated machines for closed-loop reactor temperature control.
- Selection basis: Confirm temperature range, heating load, cooling capacity, circulation connection, voltage and heat-transfer medium.
How this model fits into a process system
Use this page to compare the model against nearby UnionClay products, then match it with reactors, chillers, heating and cooling circulators, vacuum pumps, filtration units, rotary evaporators or distillation systems according to the process route. The best choice depends on temperature range, heating load, cooling capacity at target temperature, circulation flow, heat-transfer medium, voltage and reactor volume.
Before requesting a quote
Share the target capacity, working medium, temperature or vacuum requirement, voltage, connector requirements and any customization needs. UnionClay can use those details for model matching, equipment selection and project quotation support.
This content uses UnionClay customer parameter sheets and the UnionClay selection guide as the basis for temperature-control positioning.
Model Selection and Related Equipment
GDX-30-30 Heating and Cooling Integrated Machine is listed for buyers comparing heating and cooling integrated machine for laboratory, pilot and chemical process applications. Review the model with related UnionClay equipment to match temperature control, reaction, vacuum, filtration or downstream process requirements.
Common search terms for this page include GDX-30-30 Heating and Cooling Integrated Machine, heating and cooling integrated machine, heating cooling circulator, dynamic temperature control system. Buyers can also compare heating cooling circulator, dynamic temperature control system, reactor temperature control when selecting capacity, working temperature, connection requirements and process support equipment.
- View Heating and Cooling Integrated Machine
- Compare with GDX-50-40 Heating and Cooling Integrated Machine
- Compare with GDX-50-30 Heating and Cooling Integrated Machine
- Compare with GDX-5-40 Heating and Cooling Integrated Machine
- Explore Recirculating Chiller
- Explore Stainless Reactor
- Match with DLSB-50-40 Sealed Recirculating Chiller
- Match with BSF-200L Double-layer Stainless Steel Reactor
- Request a quote from UnionClay
FAQ for GDX-30-30 Heating and Cooling Integrated Machine
How do I choose this model?
Choose according to working volume, temperature range, material compatibility, connection requirements, voltage and process conditions. UnionClay can help compare nearby models in the same product series.
Which equipment is commonly used together with this product?
Depending on the process, this product can be matched with reactors, chillers, heating and cooling circulators, vacuum pumps, filtration equipment, rotary evaporators or distillation systems from UnionClay.
Can UnionClay support quotation and model matching?
Yes. Share target capacity, medium, temperature range, vacuum requirement, voltage and application details, and UnionClay will support model selection and quotation.
