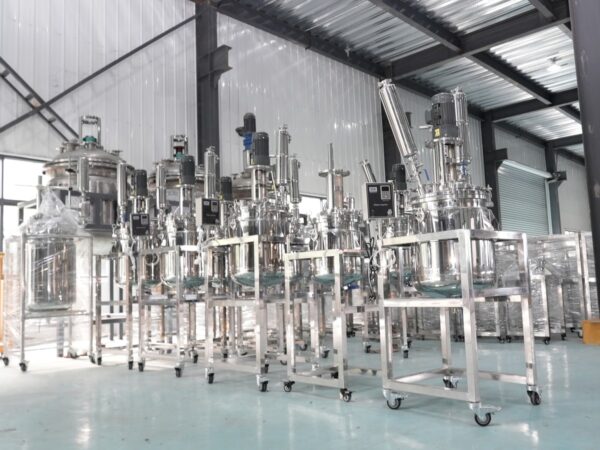

Jacketed Glass Reactor
Jacketed Glass Reactor
Borosilicate glass reactor systems for reaction, mixing, heating, cooling, distillation and extraction workflows.
✓ ISO 9001 Certified Factory
✓ CE Certified · 1-Year Warranty
✓ 7–15 Day Factory Delivery
✓ OEM / ODM · Export to 40+ Countries
✓ CE Certified · 1-Year Warranty
✓ 7–15 Day Factory Delivery
✓ OEM / ODM · Export to 40+ Countries
product details
Product overview
Jacketed glass reactors must be selected together with the temperature-control approach. Reactor capacity alone is not enough; jacket volume, heat transfer medium, lifting requirement and process temperature profile all matter.
Where this route fits
- Reaction and synthesis
- Crystallization and extraction
- Distillation and solvent handling
- Laboratory and pilot development work
What to provide before quotation
- Reactor volume, jacket type and required ports
- Target material temperature range and ramp expectations
- Vacuum / pressure condition and process medium
- Stirring, lifting and accessory requirements
- Matched TCU or chiller requirement if a full system is needed
Specification summary
| Material | GG3.3 high borosilicate glass |
|---|---|
| Capacity examples | 5L to 200L |
| Temperature range | -120°C to 300°C with suitable external equipment |
| Pressure | Vacuum or normal pressure; no positive pressure unless specified |
| Applications | Reaction, crystallization, extraction, distillation and process development |
| Configuration | Custom ports, stirring, lifting and matched temperature-control equipment |
Configuration options typically discussed before order release
- GG3.3 glass reactor route selected by vessel size, ports and lifting need
- Single-layer or jacketed utility route matched to temperature profile
- Stirring, condenser, feeding and accessory scope matched to process path
- Matched TCU or chiller package when a full temperature-control system is needed
- Vacuum and installation configuration confirmed during quotation
Typical delivery scope discussion
- Reactor vessel and mechanical configuration matched to the stated application
- Temperature-control support route clarified together with reactor discussion
- Accessory and interface scope confirmed according to process and installation needs
- Guide-led checklist support for reactor parameters and site utilities
Installation and site-preparation notes
- Confirm installation space, lifting route and service clearance before shipment
- Confirm matched external equipment, circulation interfaces and process-medium path
- Confirm voltage, utility support and any export or compliance constraints early
Related resources
Frequently asked questions
Can reactor systems be customized?
Yes. Reactor configuration, ports, stirring, lifting and matched temperature-control equipment can be selected by process need.
Can stainless steel reactors be supplied?
The UnionClay catalogue includes stainless steel, crystallization and multifunctional reactor options.
Jacketed Glass Reactor Application and Selection Guide
Use Jacketed Glass Reactor when comparing glass reactor, jacketed glass reactor, laboratory chemical reactor for visible chemical reaction, mixing, reflux, feeding and vacuum-supported laboratory process work. This section brings together source-backed details, system-fit notes, and quote-preparation points so procurement teams can review the model in context.
Use the details below to confirm fit before quotation. The source-backed notes, process-fit guidance, and related equipment links are organized for buyer review.
Source-backed details to review
- Capacity examples: 5L to 200L
- Temperature range: -120°C to 300°C with suitable external equipment
- Material: GG3.3 high borosilicate glass
- Pressure: Vacuum or normal pressure; no positive pressure unless specified
- Applications: Reaction, crystallization, extraction, distillation and process development
- Configuration: Custom ports, stirring, lifting and matched temperature-control equipment
- Material context: The customer FAQ identifies glass reactor body material as G3.3 high borosilicate glass for standard glass reactor applications.
- Selection basis: Confirm volume, layer structure, vacuum use, condenser configuration, feeding method and matched temperature-control equipment.
How this model fits into a process system
Use this page to compare the model against nearby UnionClay products, then match it with reactors, chillers, heating and cooling circulators, vacuum pumps, filtration units, rotary evaporators or distillation systems according to the process route. The best choice depends on working volume, jacket requirement, vacuum condition, stirrer configuration, condenser setup, feeding method and temperature-control equipment.
Before requesting a quote
Share the target capacity, working medium, temperature or vacuum requirement, voltage, connector requirements and any customization needs. UnionClay can use those details for model matching, equipment selection and project quotation support.
This content uses UnionClay customer reactor parameter sheets and the product specification table already published on this page.
Model Selection and Related Equipment
Compare Jacketed Glass Reactor with related UnionClay equipment when planning laboratory, pilot and chemical process applications. The links below connect the product family, nearby models, compatible support equipment, and the quote path in one place.
Use these links to move through the product-selection path without breaking context: category overview, adjacent models, matched support equipment, and UnionClay quotation.
- View Glass Reactor
- Explore Recirculating Chiller
- Explore Heating and Cooling Integrated Machine
- Match with DLSB-50-40 Sealed Recirculating Chiller
- Match with DFY-50-40 Heating and Cooling Integrated Machine
- Request model selection support
Related guides
FAQ for Jacketed Glass Reactor
How do I choose this model?
Choose according to working volume, temperature range, material compatibility, connection requirements, voltage and process conditions. UnionClay can help compare nearby models in the same product series.
Which equipment is commonly used together with this product?
Depending on the process, this product can be matched with reactors, chillers, heating and cooling circulators, vacuum pumps, filtration equipment, rotary evaporators or distillation systems from UnionClay.
Can UnionClay support quotation and model matching?
Yes. Share target capacity, medium, temperature range, vacuum requirement, voltage and application details, and UnionClay will support model selection and quotation.
