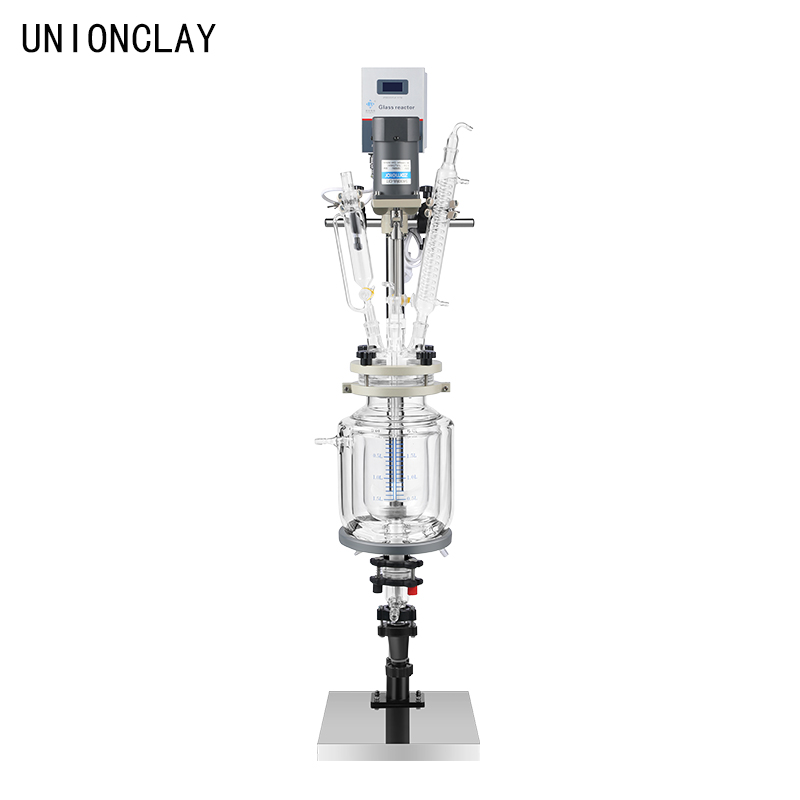

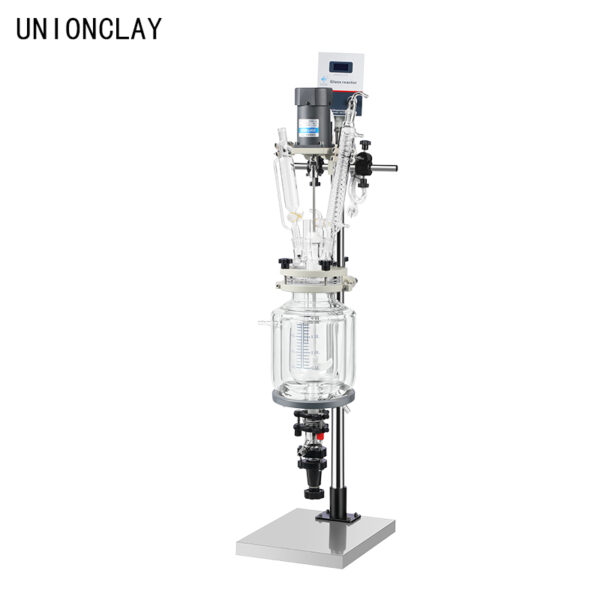

Triple Layer Glass Reactor 1L-3L
Triple Layer Glass Reactor 1L-3L
Triple Layer Glass Reactor 1L-3L for laboratory and pilot-scale process equipment applications. Contact Union Clay for model selection, configuration confirmation and quotation support.
✓ CE Certified · 1-Year Warranty
✓ 7–15 Day Factory Delivery
✓ OEM / ODM · Export to 40+ Countries
product details
Triple Layer Glass Reactor 1L-3L Overview
Triple Layer Glass Reactor 1L-3L is listed based on the client parameter sheet and current product image set. Model selection and final configuration should be confirmed according to the required capacity and operating conditions.
Parameter Reference
Name triple-layer glass reactor triple-layer glass reactor triple-layer glass reactor; Model SFS-1L SFS-2L SFS-3L; reactor lid diameter 150mm 150mm 150mm; port A 40#flange port for stirring 40#flange port for stirring 40#flange port for stirring; B 24#ground joint for constant pressure funnel 24#ground joint for constant pressure funnel 24#ground joint for constant pressure funnel; C 24#ground joint for piston valve 24#ground joint for piston valve 24#ground joint for piston valve; D 24#ground joint for condenser 24#ground joint for condenser 24#ground joint for condenser
Before Quotation
Please confirm required capacity, material contact requirements, temperature or vacuum conditions, utility supply and any customized options before quotation.
Parameter Reference
| Model | SFS-1L | SFS-2L | SFS-3L |
|---|---|---|---|
| Material | G3.3 borosilicate glass | G3.3 borosilicate glass | G3.3 borosilicate glass |
| Capacity | 1L | 2L | 3L |
| Pressure range | Normal or negative pressure | Normal or negative pressure | Normal or negative pressure |
| Vacuum | -0.095Mpa | -0.095Mpa | -0.095Mpa |
| Motor power | 40W | 90W | 90W |

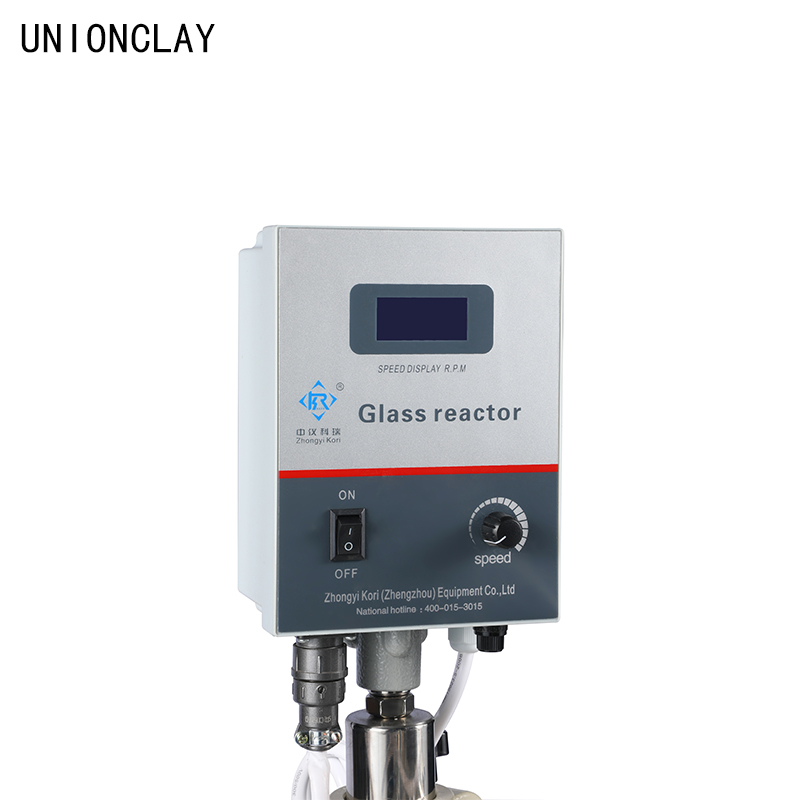

| Controller | Single digital display (speed) | Single digital display (speed) | Single digital display (speed) |
| Stirring speed | 60-1000rpm | 60-1000rpm | 60-1000rpm |
| Condenser | φ42mm | φ42m | φ42mm |
| Constant-pressure funnel | 100ml | 125ml | 250ml |
| Power supply | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Specification translated from the customer-supplied May parameter file; confirm final configuration against the quotation.
Triple Layer Glass Reactor 1L-3L Application and Selection Guide
Use Triple Layer Glass Reactor 1L-3L when comparing triple layer glass reactor, multi-layer glass reactor, chemical reactor for reaction processes that need multiple glass layers for controlled circulation or process observation. This section brings together source-backed details, system-fit notes, and quote-preparation points so procurement teams can review the model in context.
Use the details below to confirm fit before quotation. The source-backed notes, process-fit guidance, and related equipment links are organized for buyer review.
Source-backed details to review
- Process role: Triple-layer glass reactor source sheets list model-level glass reactor configurations for controlled laboratory process work.
- Selection basis: Confirm vessel volume, port arrangement, circulation loop, condenser configuration and matched temperature-control equipment.
How this model fits into a process system
Use this page to compare the model against nearby UnionClay products, then match it with reactors, chillers, heating and cooling circulators, vacuum pumps, filtration units, rotary evaporators or distillation systems according to the process route. The best choice depends on volume, circulation loop, port arrangement, condenser configuration, vacuum condition and matched temperature-control equipment.
Before requesting a quote
Share the target capacity, working medium, temperature or vacuum requirement, voltage, connector requirements and any customization needs. UnionClay can use those details for model matching, equipment selection and project quotation support.
This content uses UnionClay customer reactor parameter sheets and the product specification table already published on this page.
Model Selection and Related Equipment
Compare Triple Layer Glass Reactor 1L-3L with related UnionClay equipment when planning laboratory, pilot and chemical process applications. The links below connect the product family, nearby models, compatible support equipment, and the quote path in one place.
Use these links to move through the product-selection path without breaking context: category overview, adjacent models, matched support equipment, and UnionClay quotation.
- View Triple Layer Reactor
- Compare with Triple Layer Glass Reactor
- Compare with Triple Layer Glass Reactor 3L-5L
- Explore Recirculating Chiller
- Explore Heating and Cooling Integrated Machine
- Match with DLSB-50-40 Sealed Recirculating Chiller
- Match with DFY-50-40 Heating and Cooling Integrated Machine
- Request model selection support
Related guides
FAQ for Triple Layer Glass Reactor 1L-3L
How do I choose this model?
Choose according to working volume, temperature range, material compatibility, connection requirements, voltage and process conditions. UnionClay can help compare nearby models in the same product series.
Which equipment is commonly used together with this product?
Depending on the process, this product can be matched with reactors, chillers, heating and cooling circulators, vacuum pumps, filtration equipment, rotary evaporators or distillation systems from UnionClay.
Can UnionClay support quotation and model matching?
Yes. Share target capacity, medium, temperature range, vacuum requirement, voltage and application details, and UnionClay will support model selection and quotation.
