JH-200-09 High-temperature Thermostatic Bath
JH-200-09 High-temperature Thermostatic Bath
JH-200-09 High-temperature Thermostatic Bath. Model: JH-200-09; Operating range: 200℃ to room temperature; Total power: 9.4KW; Total current: 14.3A; Power.
✓ CE Certified · 1-Year Warranty
✓ 7–15 Day Factory Delivery
✓ OEM / ODM · Export to 40+ Countries
product details
JH-200-09 High-temperature Thermostatic Bath Overview
JH-200-09 High-temperature Thermostatic Bath is listed from the customer-supplied JH high-temperature thermostatic bath document. The specification below is translated directly from the model document and covers heating, circulation, control and material configuration.
Technical Specifications
| Product name | Sealed heating circulator |
|---|---|
| Model | JH-200-09 |
| Expansion tank | 30L |
| Operating range | 200℃ to room temperature |
| Ambient temperature | 5-40℃ |
| Recommended ambient humidity | ≤60% |
| Power supply | 380V 50HZ |
| Heating power | 9KW |
| Circulation pump power | 370W |
| Rated flow | 45L/min |
| Rated head | 25m |
| Total power | 9.4KW |
| Total current | 14.3A |
| Inlet/outlet connector specification | DN20 |
| Temperature control resolution | 0.1℃ |
| Temperature control mode | PID |
| Display type | LCD display |
| Display items | heating and circulation |
| Pipeline and valve material | stainless steel hose |
| Shell material | electrostatic powder coating |
| Heating element material | SUS304 |
| Pipeline and valve material | stainless steel |
| Inner tank material | stainless steel |
| Inlet/outlet connector material | stainless steel |
| Brake caster quantity | 4 |
| Closed circulation system | The whole system is fully closed. It does not generate oil mist at high temperature or absorb moisture from air at low temperature. During operation, the system avoids pressure rise caused by high temperature and automatically supplements heat-transfer medium at low temperature. |
| Shell size | 70*57*80cm |
| Packing list | Main unit, valves x3, stainless steel hoses x2, key x1, gaskets x4, PTFE tape x1 roll, user manual |
Configuration Notes

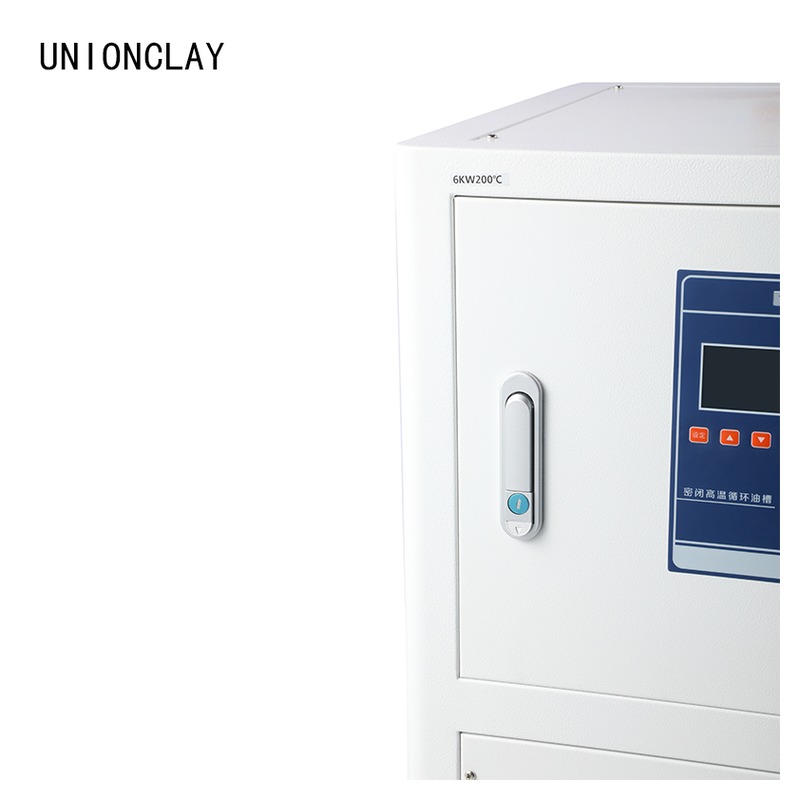

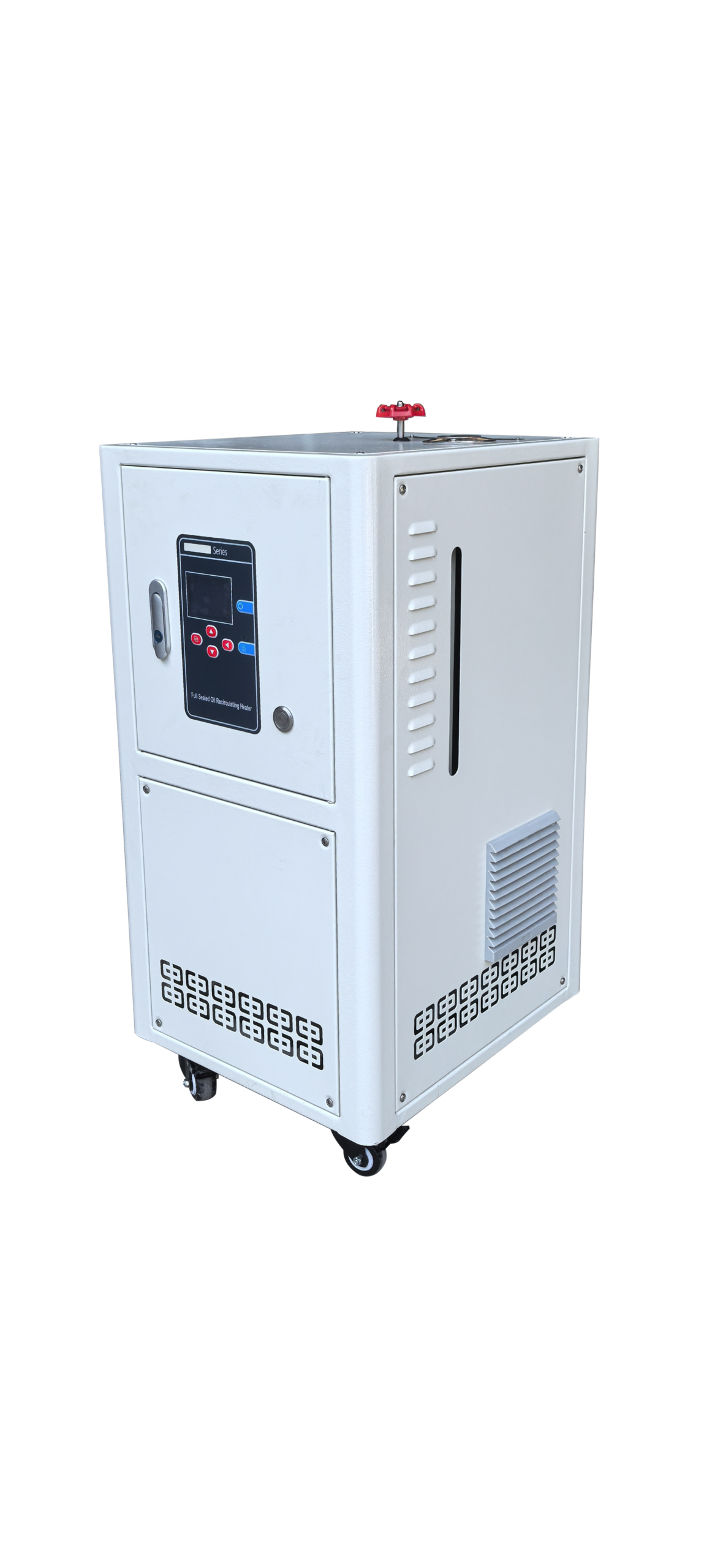

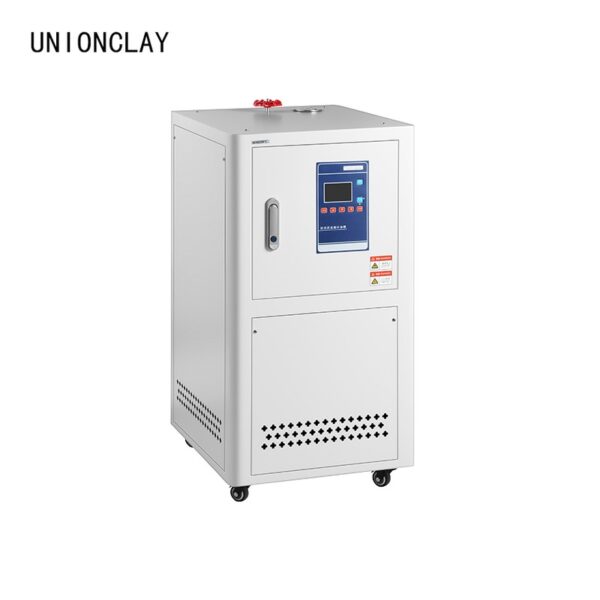

- The supplied images are family-level high-temperature bath images; exact model image matching should be confirmed if required.
- The closed circulation system description is translated from the customer document.
Before Quotation
- Confirm model, voltage, target temperature range and connected reactor or process volume.
- Confirm pipe connection size, heat-transfer medium and site installation conditions.
Content basis: customer JH model document from the May 27 UnionClay material folder.
JH-200-09 High-temperature Thermostatic Bath Application and Selection Guide
Use JH-200-09 High-temperature Thermostatic Bath when comparing high-temperature thermostatic bath, closed circulation oil bath, laboratory thermostatic bath for closed circulation heating support for reactors and process equipment that require stable high-temperature operation. This section brings together source-backed details, system-fit notes, and quote-preparation points so procurement teams can review the model in context.
Use the details below to confirm fit before quotation. The source-backed notes, process-fit guidance, and related equipment links are organized for buyer review.
Source-backed details to review
- Model: JH-200-09
- Product name: Sealed heating circulator
- Product name: Sealed heating circulator
- Operating range: 200℃ to room temperature
- Temperature control mode: PID
- Heating power: 9KW
- Rated flow: 45L/min
- Source-backed configuration: Customer source sheets list PID intelligent temperature control, stainless inner material and oil or water/oil heat-transfer media depending on the bath series.
- Selection basis: Confirm operating temperature, heating power, circulation flow, pump head, connector size and voltage.
How this model fits into a process system
Use this page to compare the model against nearby UnionClay products, then match it with reactors, chillers, heating and cooling circulators, vacuum pumps, filtration units, rotary evaporators or distillation systems according to the process route. The best choice depends on operating temperature, heating power, pump flow, head pressure, connector size, heat-transfer medium and voltage.
Before requesting a quote
Share the target capacity, working medium, temperature or vacuum requirement, voltage, connector requirements and any customization needs. UnionClay can use those details for model matching, equipment selection and project quotation support.
This content uses UnionClay customer parameter sheets and product-family source material provided for the independent site.
Model Selection and Related Equipment
Compare JH-200-09 High-temperature Thermostatic Bath with related UnionClay equipment when planning laboratory, pilot and chemical process applications. The links below connect the product family, nearby models, compatible support equipment, and the quote path in one place.
Use these links to move through the product-selection path without breaking context: category overview, adjacent models, matched support equipment, and UnionClay quotation.
- View High-temperature Thermostatic Bath
- Compare with JH-200-4.5 High-temperature Thermostatic Bath
- Compare with JH-200-15 High-temperature Thermostatic Bath
- Compare with JH-200-12 High-temperature Thermostatic Bath
- Explore Recirculating Chiller
- Explore Heating and Cooling Integrated Machine
- Match with DLSB-50-40 Sealed Recirculating Chiller
- Match with DFY-50-40 Heating and Cooling Integrated Machine
- Request model selection support
FAQ for JH-200-09 High-temperature Thermostatic Bath
How do I choose this model?
Choose according to working volume, temperature range, material compatibility, connection requirements, voltage and process conditions. UnionClay can help compare nearby models in the same product series.
Which equipment is commonly used together with this product?
Depending on the process, this product can be matched with reactors, chillers, heating and cooling circulators, vacuum pumps, filtration equipment, rotary evaporators or distillation systems from UnionClay.
Can UnionClay support quotation and model matching?
Yes. Share target capacity, medium, temperature range, vacuum requirement, voltage and application details, and UnionClay will support model selection and quotation.
