JH-200-4.5 High-temperature Thermostatic Bath
JH-200-4.5 High-temperature Thermostatic Bath. Model: JH-200-4.5; Operating range: 200℃ to room temperature; Total power: 4.8KW; Total current: 22A; Power.
product details
JH-200-4.5 High-temperature Thermostatic Bath Overview
JH-200-4.5 High-temperature Thermostatic Bath is listed from the customer-supplied JH high-temperature thermostatic bath document. The specification below is translated directly from the model document and covers heating, circulation, control and material configuration.
Technical Specifications
| Product name | High-temperature thermostatic bath |
|---|---|
| Model | JH-200-4.5 |
| Expansion tank | 10L |
| Operating range | 200℃ to room temperature |
| Ambient temperature | 5℃-40℃ |
| Recommended ambient humidity | ≤60% |
| Power supply | 220V |
| Heating power | 4.5KW |
| Circulation pump power | 160W |
| Rated flow | 20L/min |
| Rated head | 20m |
| Total power | 4.8KW |
| Total current | 22A |
| Inlet/outlet connector specification | DN15 |
| Temperature control resolution | 0.1℃ |
| Temperature control mode | PID |
| Display type | LCD display |
| Display items | heating and circulation |
| Pipeline and valve material | stainless steel hose |
| Shell material | electrostatic powder coating |
| Heating element material | SUS304 |
| Pipeline and valve material | stainless steel |
| Inner tank material | stainless steel |
| Inlet/outlet connector material | stainless steel |
| Brake caster quantity | 4 |
| Closed circulation system | The whole system is fully closed. It does not generate oil mist at high temperature or absorb moisture from air at low temperature. During operation, the system avoids pressure rise caused by high temperature and automatically supplements heat-transfer medium at low temperature. |
| Packing list | Main unit, valves x3, stainless steel hoses x2, key x1, gaskets x4, PTFE tape x1 roll, user manual |
Configuration Notes

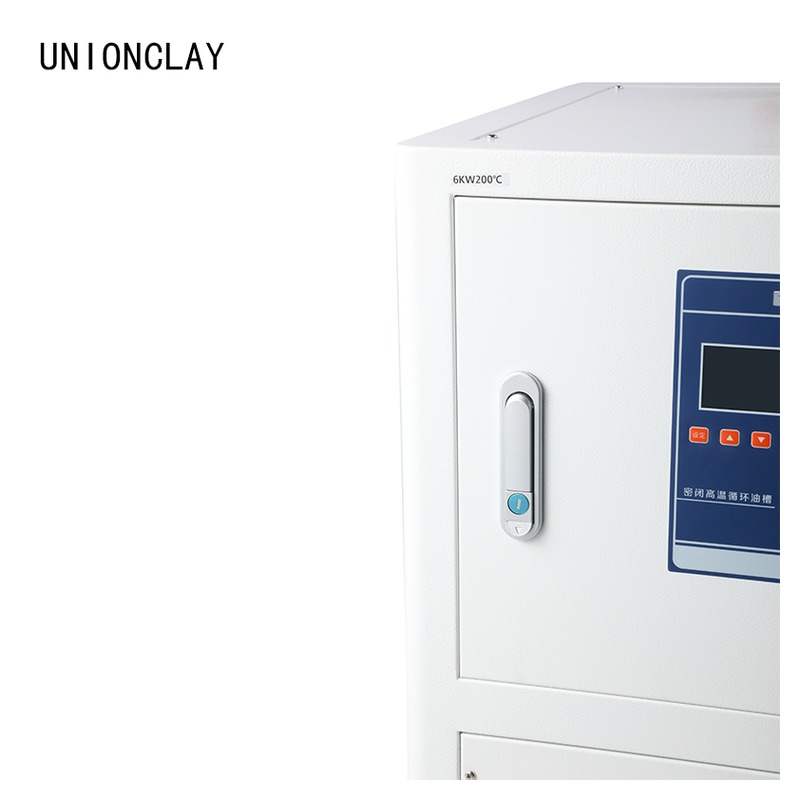

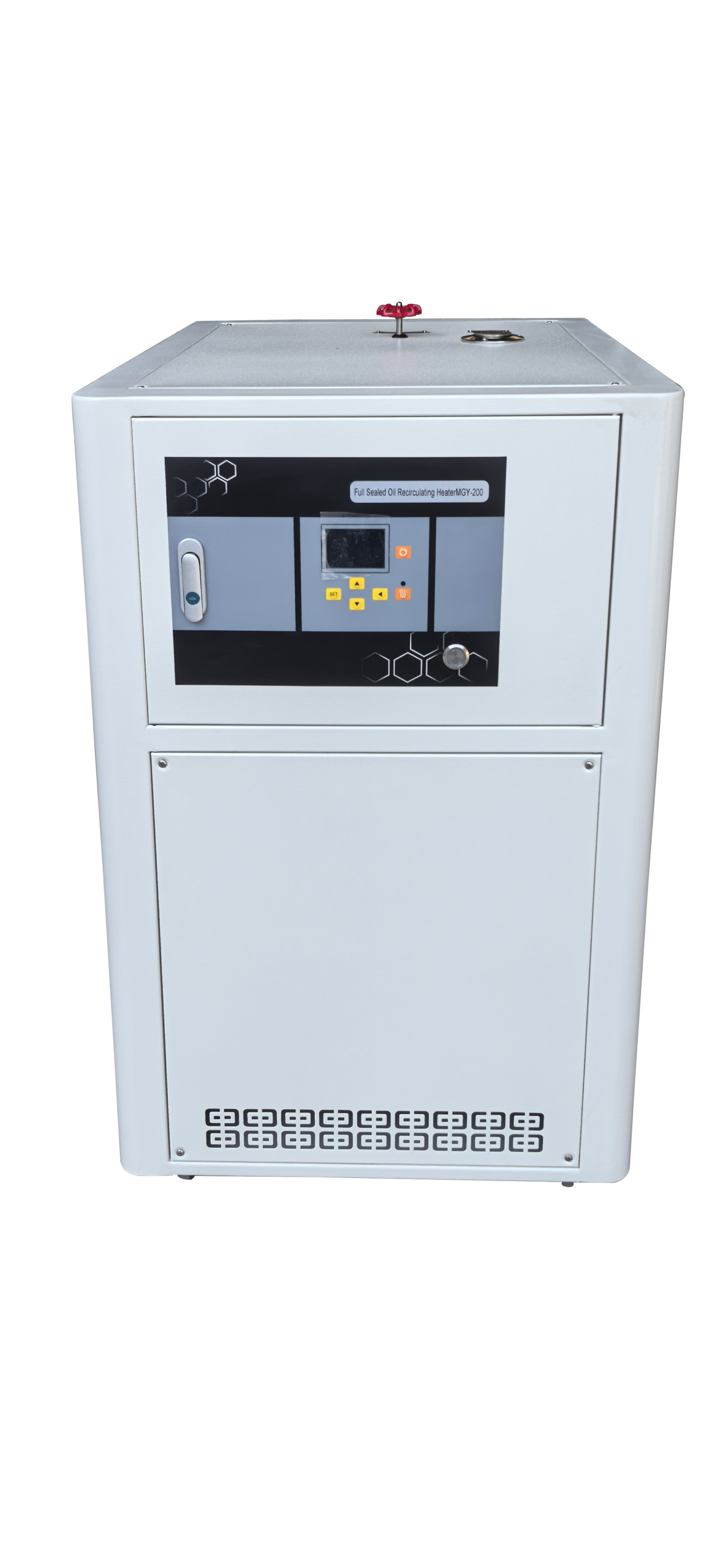

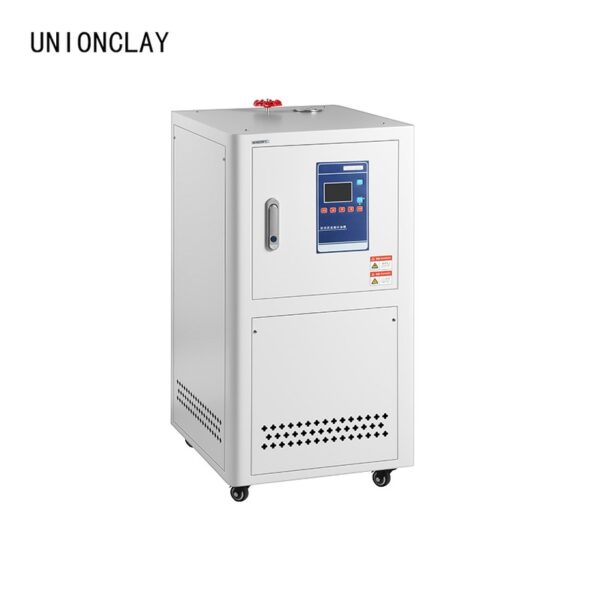

- The supplied images are family-level high-temperature bath images; exact model image matching should be confirmed if required.
- The closed circulation system description is translated from the customer document.
Before Quotation
- Confirm model, voltage, target temperature range and connected reactor or process volume.
- Confirm pipe connection size, heat-transfer medium and site installation conditions.
Content basis: customer JH model document from the May 27 UnionClay material folder.
JH-200-4.5 High-temperature Thermostatic Bath Application and Selection Guide
JH-200-4.5 High-temperature Thermostatic Bath is positioned for buyers searching for high-temperature thermostatic bath, closed circulation oil bath, laboratory thermostatic bath with clear model-level specifications rather than a generic catalog listing. It is most relevant for closed circulation heating support for reactors and process equipment that require stable high-temperature operation.
For SEO and AI search context, the key entity on this page is high-temperature thermostatic bath from UnionClay, supported by model data, quotation guidance and internal links to related equipment families.
Source-backed details to review
- Model: JH-200-4.5
- Product name: High-temperature thermostatic bath
- Product name: High-temperature thermostatic bath
- Operating range: 200℃ to room temperature
- Temperature control mode: PID
- Heating power: 4.5KW
- Rated flow: 20L/min
- Source-backed configuration: Customer source sheets list PID intelligent temperature control, stainless inner material and oil or water/oil heat-transfer media depending on the bath series.
- Selection basis: Confirm operating temperature, heating power, circulation flow, pump head, connector size and voltage.
How this model fits into a process system
Use this page to compare the model against nearby UnionClay products, then match it with reactors, chillers, heating and cooling circulators, vacuum pumps, filtration units, rotary evaporators or distillation systems according to the process route. The best choice depends on operating temperature, heating power, pump flow, head pressure, connector size, heat-transfer medium and voltage.
Before requesting a quote
Share the target capacity, working medium, temperature or vacuum requirement, voltage, connector requirements and any customization needs. UnionClay can use those details for model matching, equipment selection and project quotation support.
This content uses UnionClay customer parameter sheets and product-family source material provided for the independent site.
Model Selection and Related Equipment
JH-200-4.5 High-temperature Thermostatic Bath is listed for buyers comparing high-temperature thermostatic bath for laboratory, pilot and chemical process applications. Review the model with related UnionClay equipment to match temperature control, reaction, vacuum, filtration or downstream process requirements.
Common search terms for this page include JH-200-4.5 High-temperature Thermostatic Bath, high-temperature thermostatic bath, oil bath, laboratory thermostatic bath. Buyers can also compare oil bath, laboratory thermostatic bath, constant temperature bath when selecting capacity, working temperature, connection requirements and process support equipment.
- View High-temperature Thermostatic Bath
- Compare with JH-200-15 High-temperature Thermostatic Bath
- Compare with JH-200-12 High-temperature Thermostatic Bath
- Compare with JH-200-09 High-temperature Thermostatic Bath
- Explore Recirculating Chiller
- Explore Heating and Cooling Integrated Machine
- Match with DLSB-50-40 Sealed Recirculating Chiller
- Match with DFY-50-40 Heating and Cooling Integrated Machine
- Request a quote from UnionClay
FAQ for JH-200-4.5 High-temperature Thermostatic Bath
How do I choose this model?
Choose according to working volume, temperature range, material compatibility, connection requirements, voltage and process conditions. UnionClay can help compare nearby models in the same product series.
Which equipment is commonly used together with this product?
Depending on the process, this product can be matched with reactors, chillers, heating and cooling circulators, vacuum pumps, filtration equipment, rotary evaporators or distillation systems from UnionClay.
Can UnionClay support quotation and model matching?
Yes. Share target capacity, medium, temperature range, vacuum requirement, voltage and application details, and UnionClay will support model selection and quotation.
